Shallow Water Anchor Bracket – Deck Mount

Heavy duty TIG welded aluminum brackets for guiding your shallow water anchor pin.

Shallow water anchors are a simple and inexpensive way to hold your boat in a shallow water fishing spot. Our brackets are fully customizable to accept any diameter anchor pin on the market.

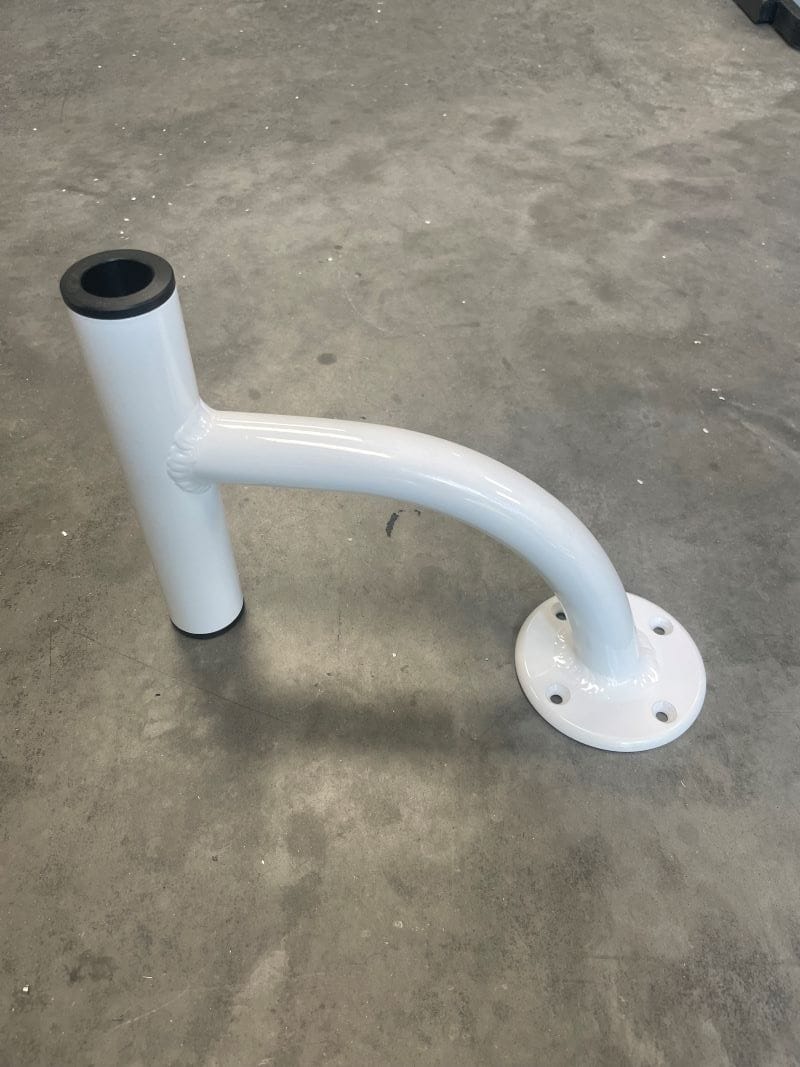

Our unique brackets provide a vertical guide for the poles for easy deployment and retrieval. This deck bracket is designed to be installed on a flat surface and hang over the side. Suitable for bay boat and flat boat decks or pontoon boat decks.

Standard Dimensions:

• Guide Pipe: 8″ long
• Mounting pad: 4″ round machined pad with 4x 1/4″ holes.
• The guide pipe reaches about 8″ from the pad center w/ 5″ clearance from the deck. The bottom of the guide pipe is level with the bottom of the pad.
• Delrin barrel liner bushing is included on top and bottom (.80″, 1.05″, 1.38″ ID for the bushing depending on guide pipe selection).

Options:

• Regular 1″ guide pipe with .80″ bushing for 3/4″ anchors
• Large 1-1/4″guide pipe with 1.05″ bushing for 1″ anchors
• Extra large 1-1/2″ guide pipe with 1.35″ bushing for 1″ sch 40 pipe push poles and spud poles.
• Double-barrel w/ 1 closed end pipe for holstering.
• Powder coating
