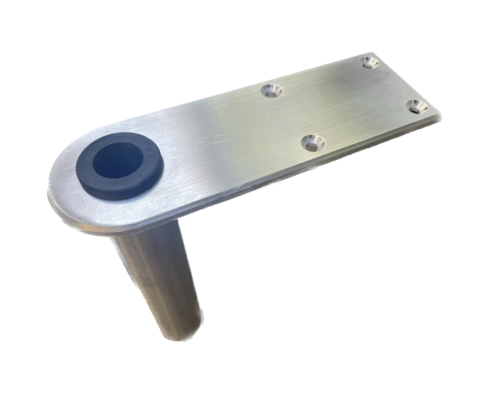

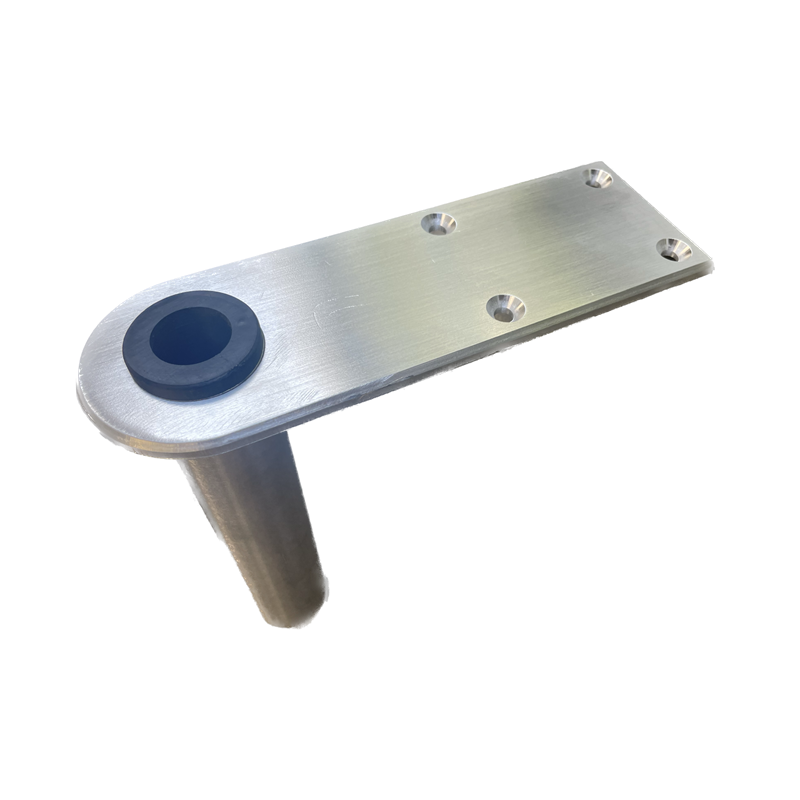

Shallow Water Anchor Bracket – Offset Flush Deck Mount

Heavy duty TIG welded aluminum brackets for guiding your shallow water anchor pin.

Shallow water anchors are a simple and inexpensive way to hold your boat in a shallow water fishing spot. Our brackets are fully customizable to accept any diameter anchor pin on the market.

Our unique brackets provide a vertical guide for the poles for easy deployment and retrieval. This style of deck mount is meant to mount flush in the deck of a boat and extend over the side.

Standard Dimensions:

• Guide Pipe: 8″ long x 1″ sch 40 pipe (1.315″ OD/1.05″ ID) – fits 3/4″ diameter anchor pins.
• Mounting pad: 9×3 in diameter 1/4″ thick pad with 4 countersunk holes.
• Machined Delrin liner bushings are included in the top and bottom.
• 4×3 backing pad is including (no fasteners)

Options:

• Regular 1″ guide pipe with .80″ bushing for 3/4″ anchors
• Large 1-1/4″guide pipe with 1.05″ bushing for 1″ anchors
• Extra large 1-1/2″ guide pipe with 1.35″ bushing for 1″ sch 40 pipe push poles and spud poles.
• Powder coating

Add-ons:

• Fastener kits
