Skiff Grab Bar

Aluminum skiff grab bars with optional switch panels and GPS mounts. Choose bare aluminum or powder coating.

Electronics Box:

Add a 4″x4″ electronics box to your grab bar. The bottom of the box is removable for electrical rigging and a watertight bulkhead connector is provided for the wiring to exit the side of the E-box.

Cutouts for rocker switch installation can be made for easy installation. Contact us for custom cutouts and templating for GPS installation.

Dimensions:

Skiff grab bars are made from 1″ sch 40 pipe. The standard grab bar dimensions are 12″ wide by 36″ tall measured on the pipe centers.

Fasteners:

Optional fasteners can be included in your order. All fasteners are 316 Stainless Steel. Choose self-tapping #1 screws or 1/4-20 machine screws (includes washers, nuts, and backing plate ). Grab bars are built with 4″ round mounting pads with countersunk holes in each pad.

Rod Holders and Cupholders:

Optional rod holders for the side of the grab bar. Put it in your order notes where you want these, otherwise the rod holder will go in the lower port side and cupholder on upper port side.

Forward Legs:

We can install forward legs on your grab bar. The forward legs are a nice place to strap down a cooler or small jump seat and add stability to the installation.

The single leg option will have 1 additional leg and use the same width 12″ grab bar without legs.

The double leg option will have 2 legs and the grab bar will be widened to 18″ on pipe center to accommodate a normal 40-60 qt cooler.

$275.00

The lead time for this product is approximately 2 weeks

Electronics Box *

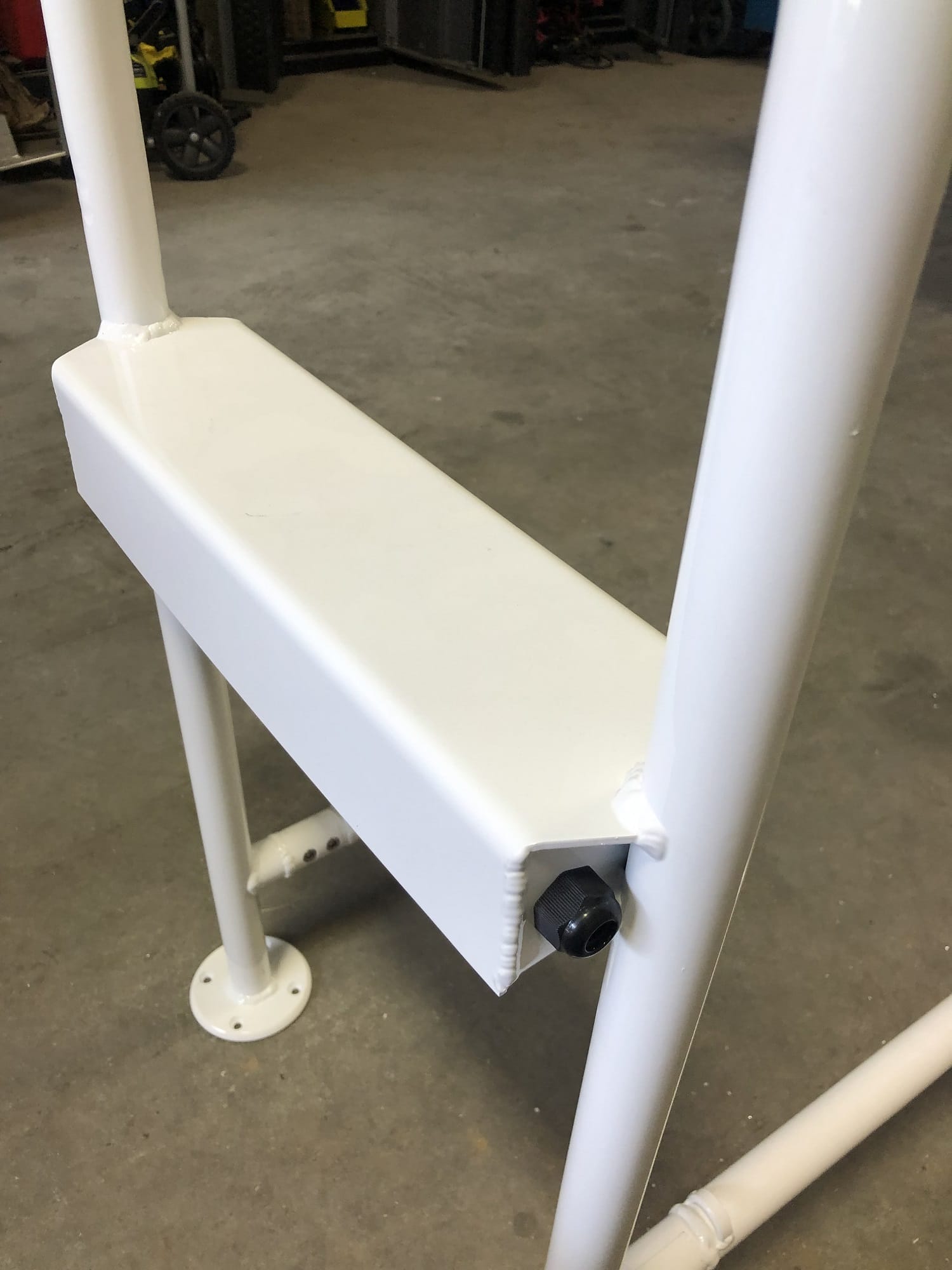

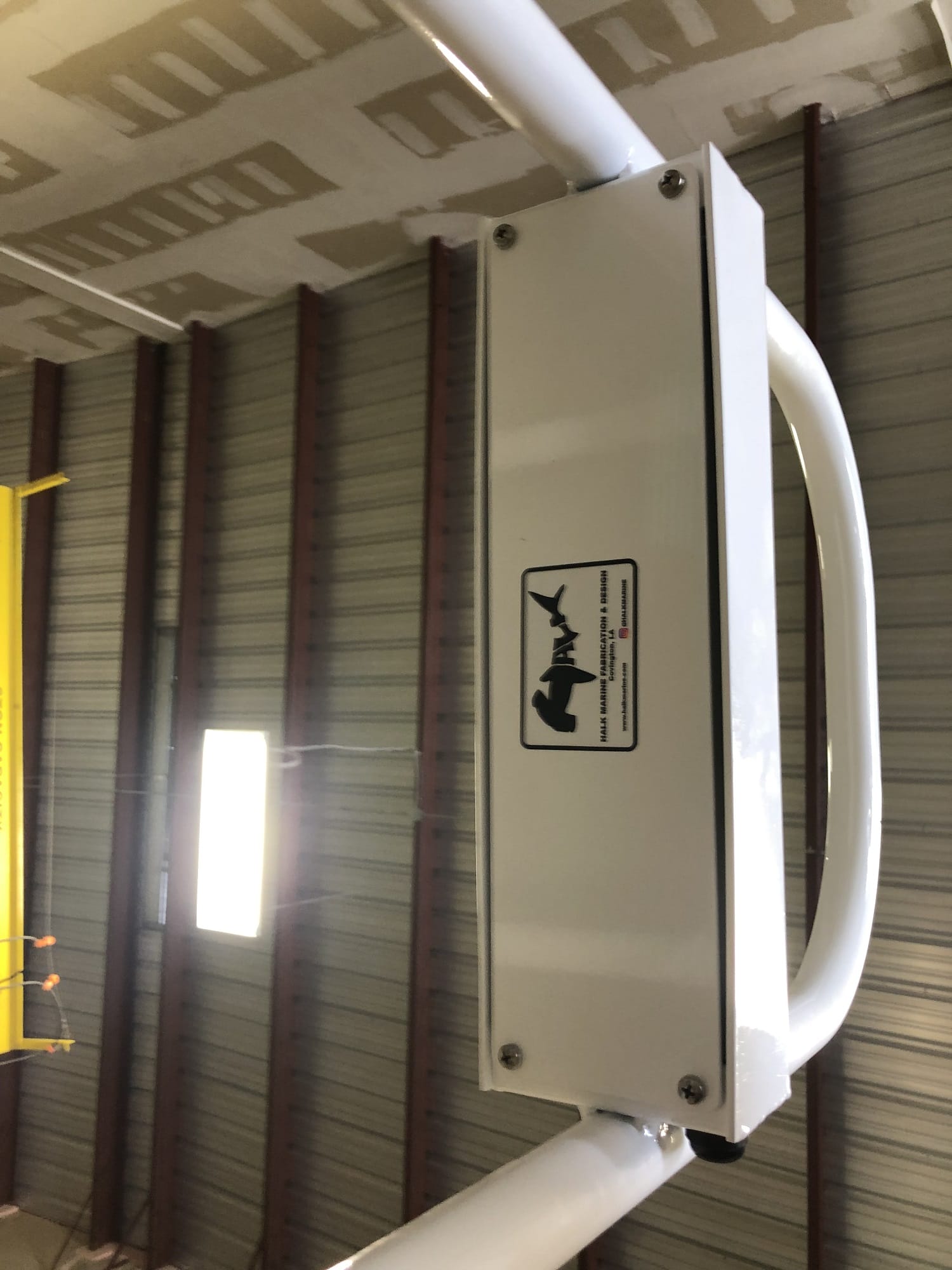

The electronics box is a formed 4.5″x3″ box with removable bottom hatch and rubber grommet seal for running wires into the box. We offer 2 configurations of the box: no switch cutouts and the other with 4 rocker switch cutouts and one opening for a round USB/cigarette outlet. Switch cutouts will be shipped with blank plugs (switches not included, sold separately).

Fasteners *

The grab bars have 4″ round mounting pads with 4 countersunk holes for #14 or 1/4″ fasteners. Do you want 316 stainless fasteners included in your order?

Finish *

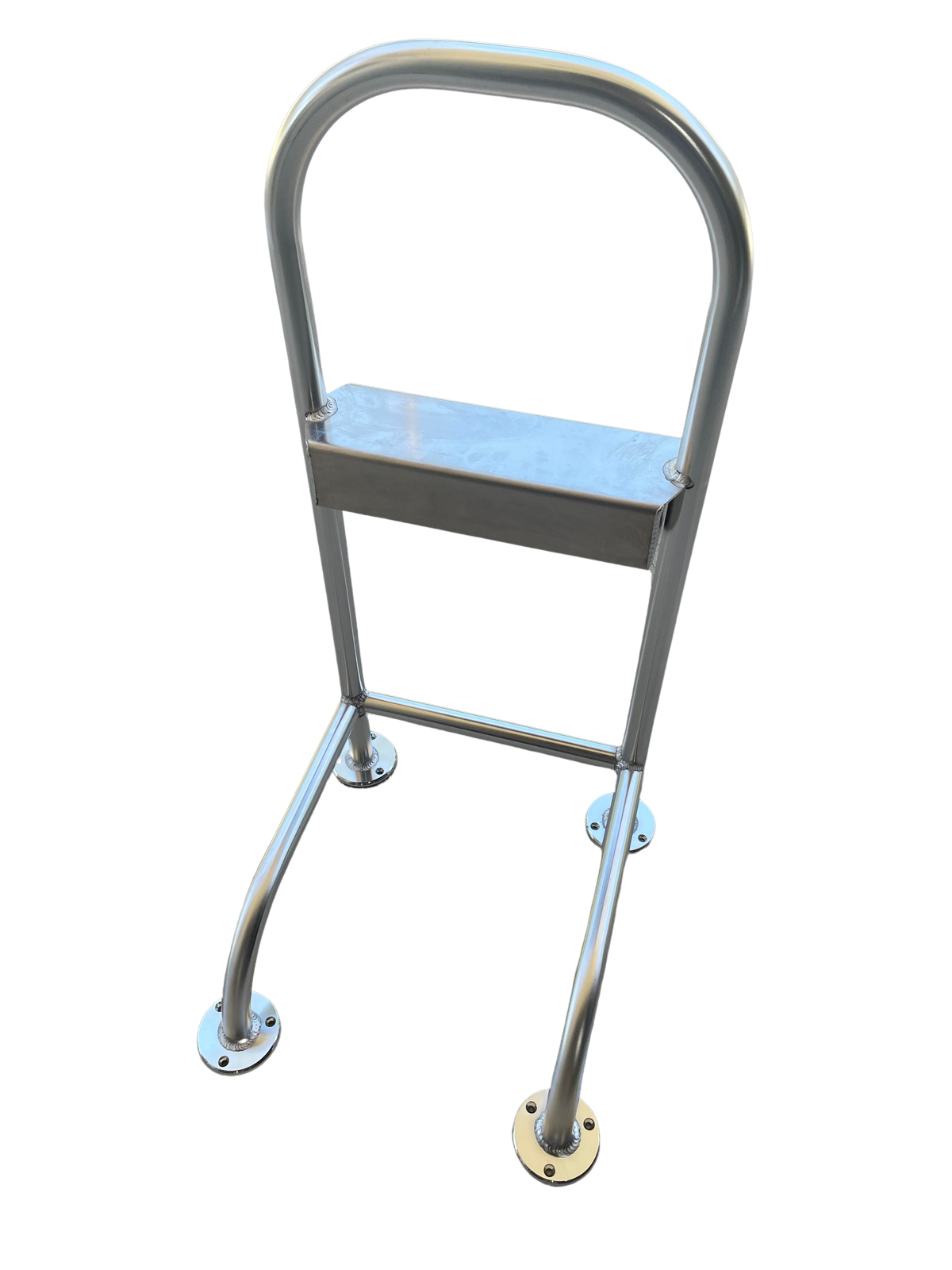

Choose bare aluminum, powder coating, or anodized.
Note – the e-box cannot be anodized. Powder coating adds 1-2 weeks to lead time.

Rod Holders *

We can add rod holders to one or both sides. Rod holders include liners.

Forward Cooler Legs *

We can add a pair of forward legs. People will use this location to strap down a cooler or small jump seat. It also provides stability for the grab rail. This includes the additional shipping price for the larger box.

The single leg option will use the same 12″ wide frame without the forward leg. The double leg option will be widened to 18″.

Note: if your item is going to be shipped, we install these with coupler fittings to assist in shipping costs, otherwise the box would be huge and mostly empty.

Cupholders *

Choose cupholders. These are welded aluminum rings with stainless cupholder inserts. Fits tumblers!

Customization Notes

Enter the details of your customization notes. For example, rod holder or cupholder locations, flared or spinning rod holder, dimensions of your ice chest, switch layout, etc.

SKU: GRABBAR Category: Tags: ,

You may also like…

Related products

Skiff Grab Bar Photo Gallery

Our custom skiff grab bar with all the bells and whistle plus extra long legs. This is being installed on a Boston Whaler. Customize and buy your grab bar straight on our website. This combo costs $985. #skiffgrabbar #skifflife #grabbar #bostonwhaler #aluminumwelding #powdercoating

38 0
Open
Our custom skiff grab bar with all the bells and whistle plus extra long legs. This is being installed on a Boston Whaler. Customize and buy your grab bar straight on our website. This combo costs $985. #skiffgrabbar #skifflife #grabbar #bostonwhaler #aluminumwelding #powdercoating

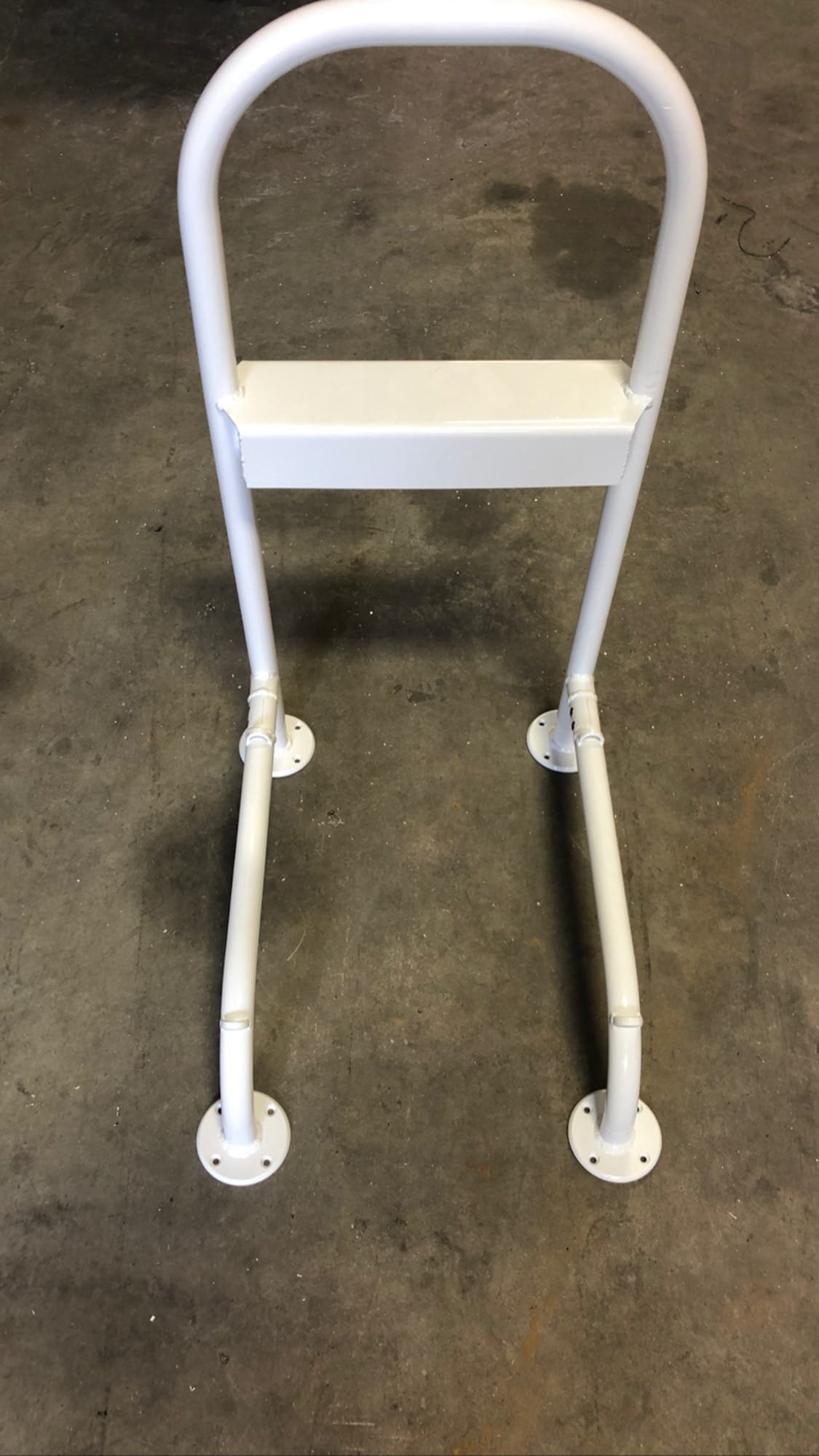

Skiff grab bar with white powdercoating, 2 forward legs for a cooler seat, 2 spinning rod holders, and electronics box. #skiffgrabbar #powdercoating #aluminumwelding #marinefabrication

20 0
Open
Skiff grab bar with white powdercoating, 2 forward legs for a cooler seat, 2 spinning rod holders, and electronics box. #skiffgrabbar #powdercoating #aluminumwelding #marinefabrication

Skiff grab in white with electronics box. #skiffgrabbar #trickmyskiff #marinefabrication

38 0
Open
Skiff grab in white with electronics box. #skiffgrabbar #trickmyskiff #marinefabrication

Custom skiff grab bar with 2 stainless cupholders ready to ship to Texas. You can customize and buy yours directly on halkmarine.com. #skiffgrabbar #trickmyskiff

25 0
Open
Custom skiff grab bar with 2 stainless cupholders ready to ship to Texas. You can customize and buy yours directly on halkmarine.com. #skiffgrabbar #trickmyskiff

Skiff grab bar with all the extras. Electronics box, 2 rod holders, 2 cupholders, and forward legs to fit a cooler. #skiff #skiffgrabbar #kayak #gheenoe

32 0
Open
Skiff grab bar with all the extras. Electronics box, 2 rod holders, 2 cupholders, and forward legs to fit a cooler. #skiff #skiffgrabbar #kayak #gheenoe
