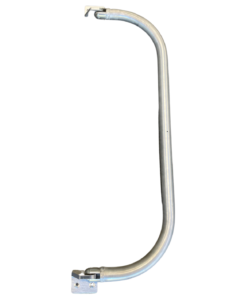

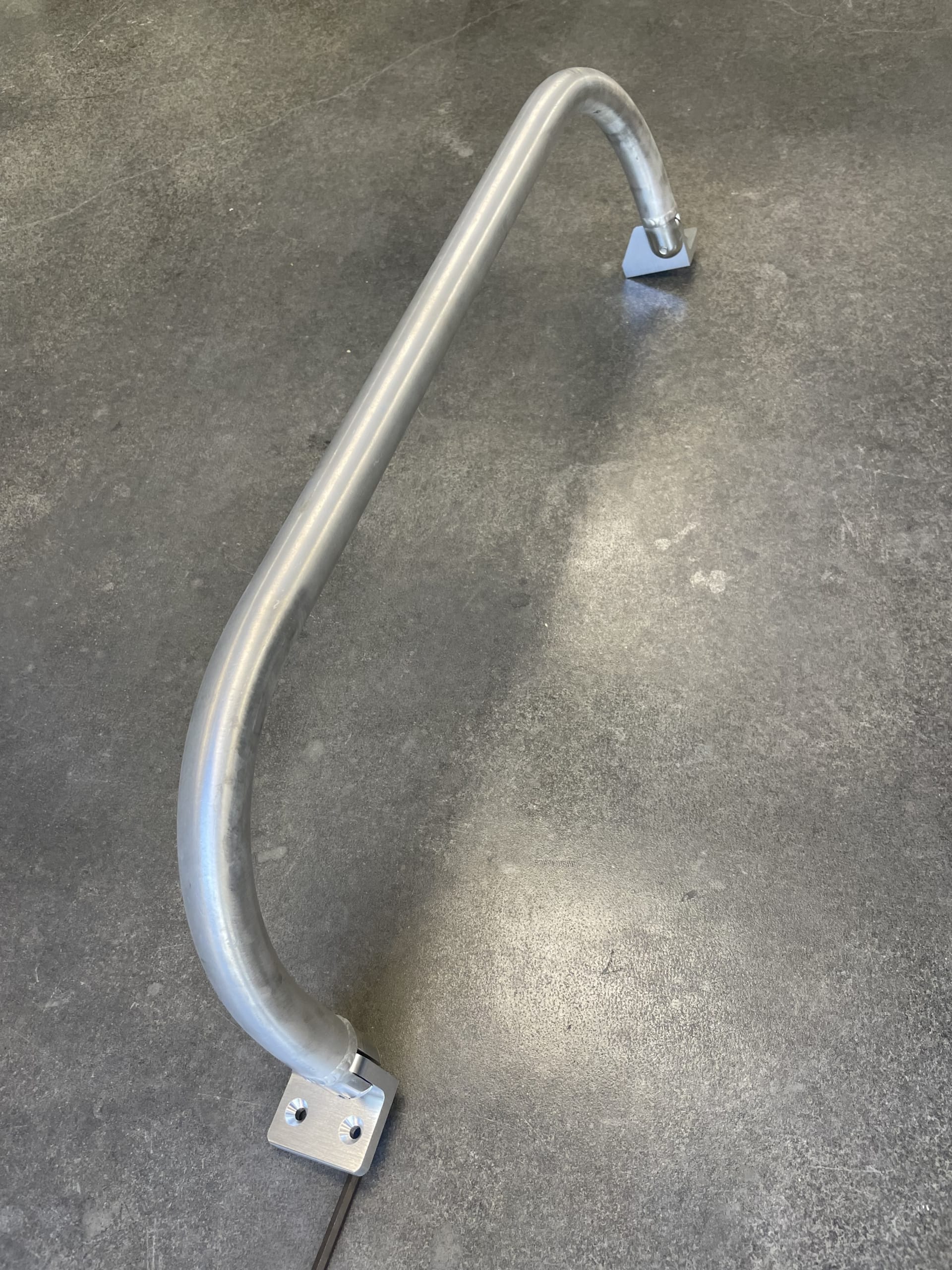

Folding Footrest

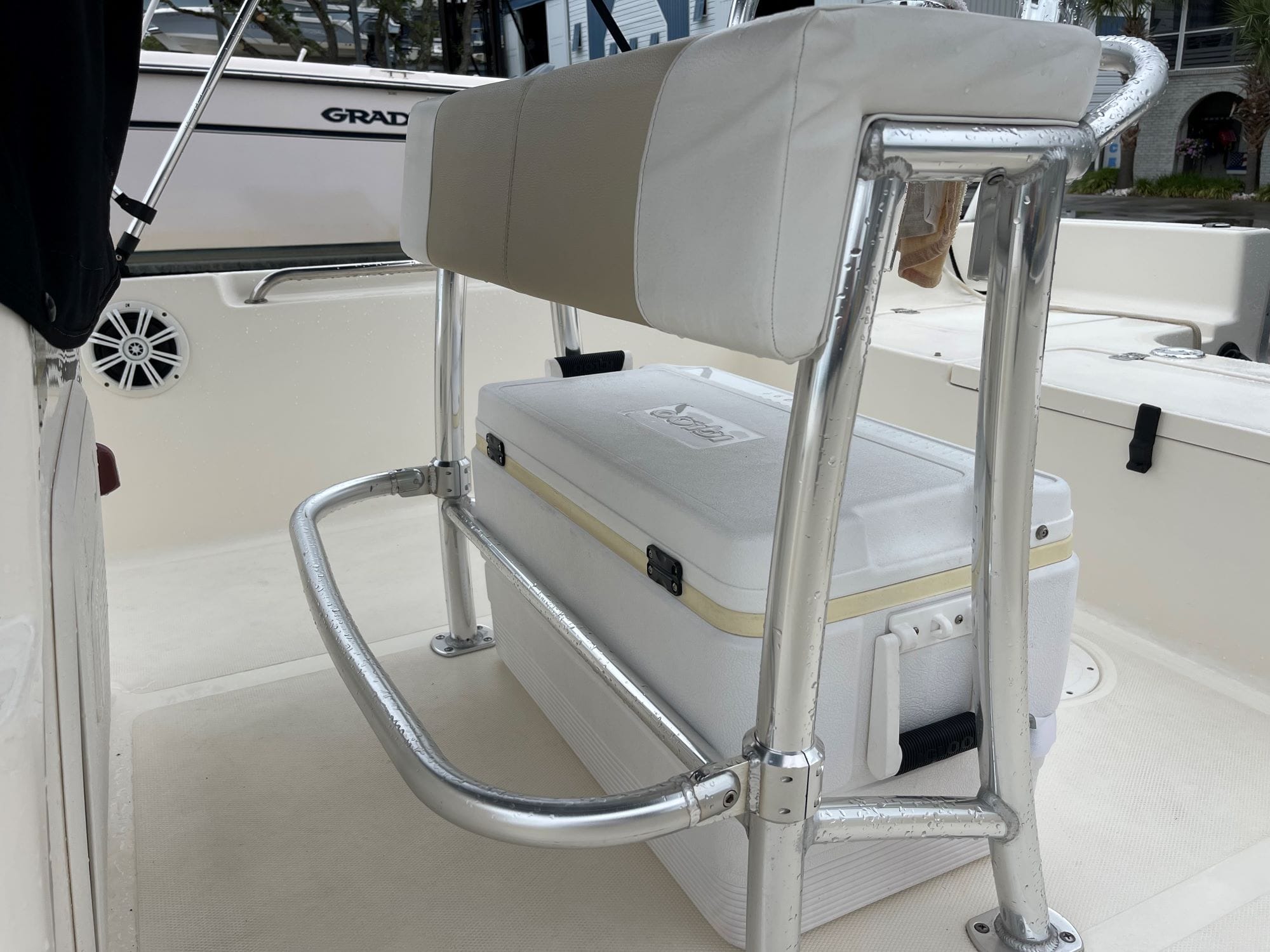

Aluminum folding footrest for adding to your boat’s leaning post, center console, or other areas which need a folding step.

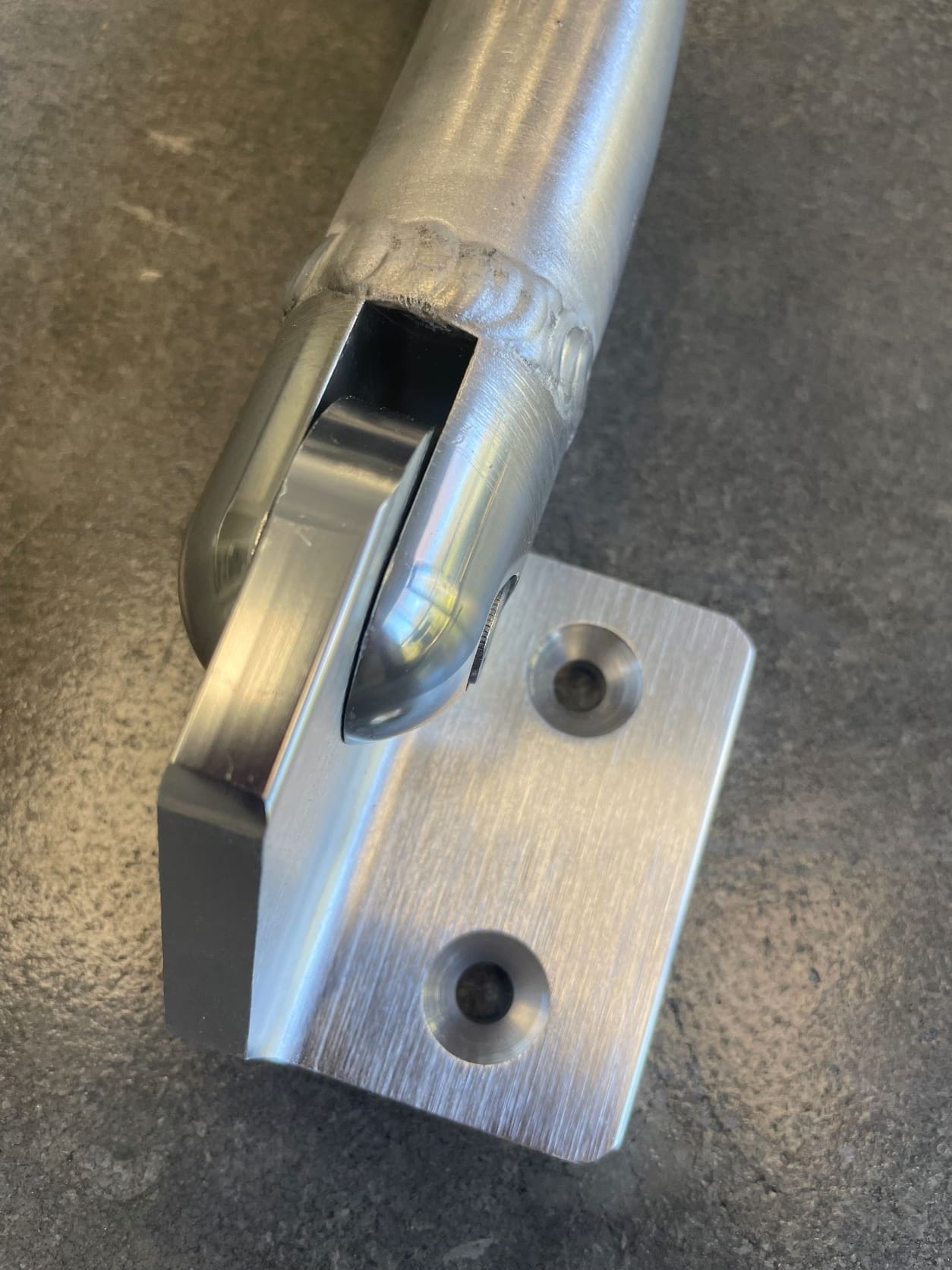

Fabricated from 1″ sch 40 aluminum pipe with machined hinge fittings. Hinges stop at 90 degrees and fold up vertically.

Dimensions:

The footrest is built to be 8″ deep. You select the length according to your needs. The length is measured from the center line of the pipe/hinge points.

Mounting Style:

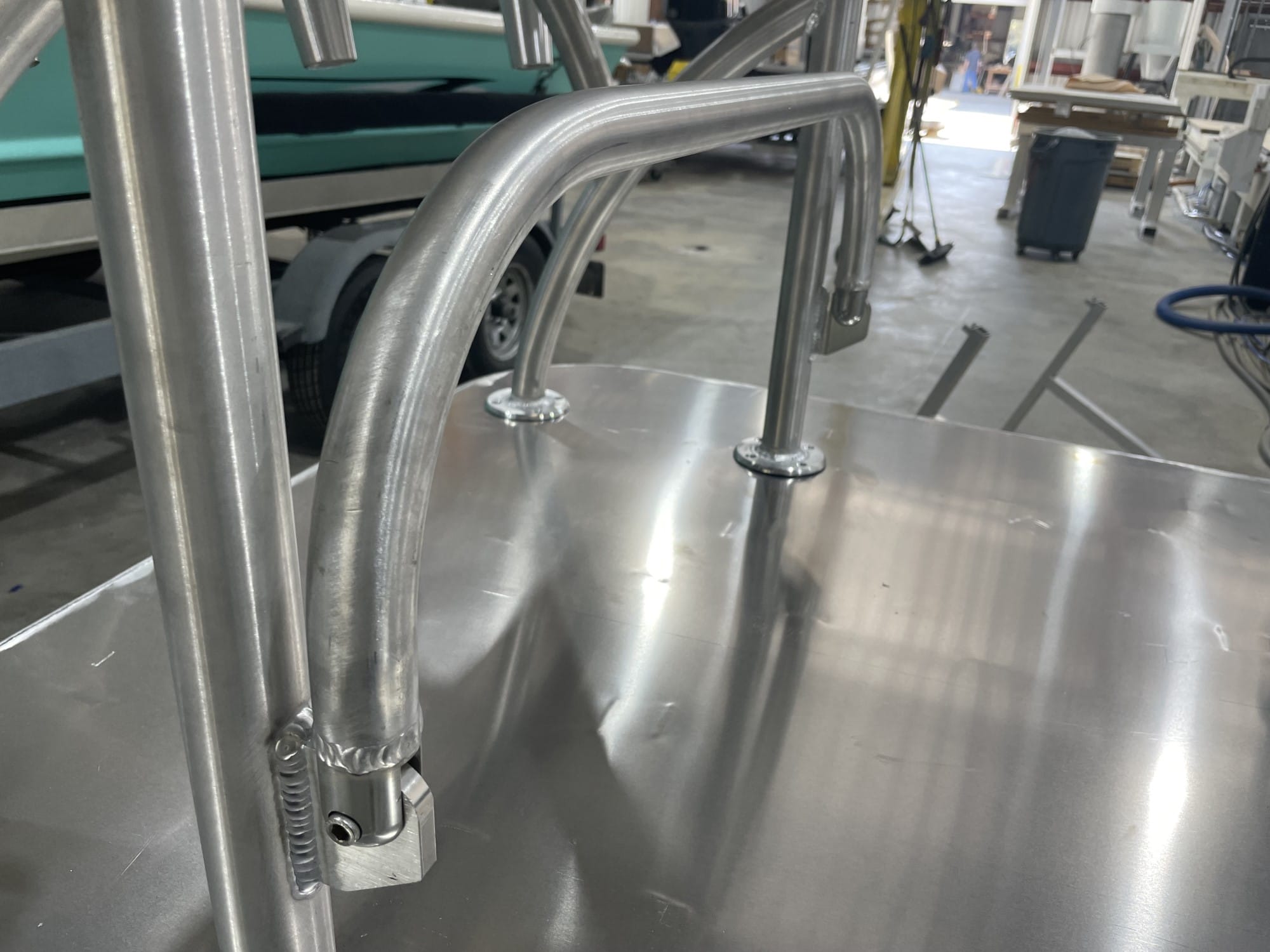

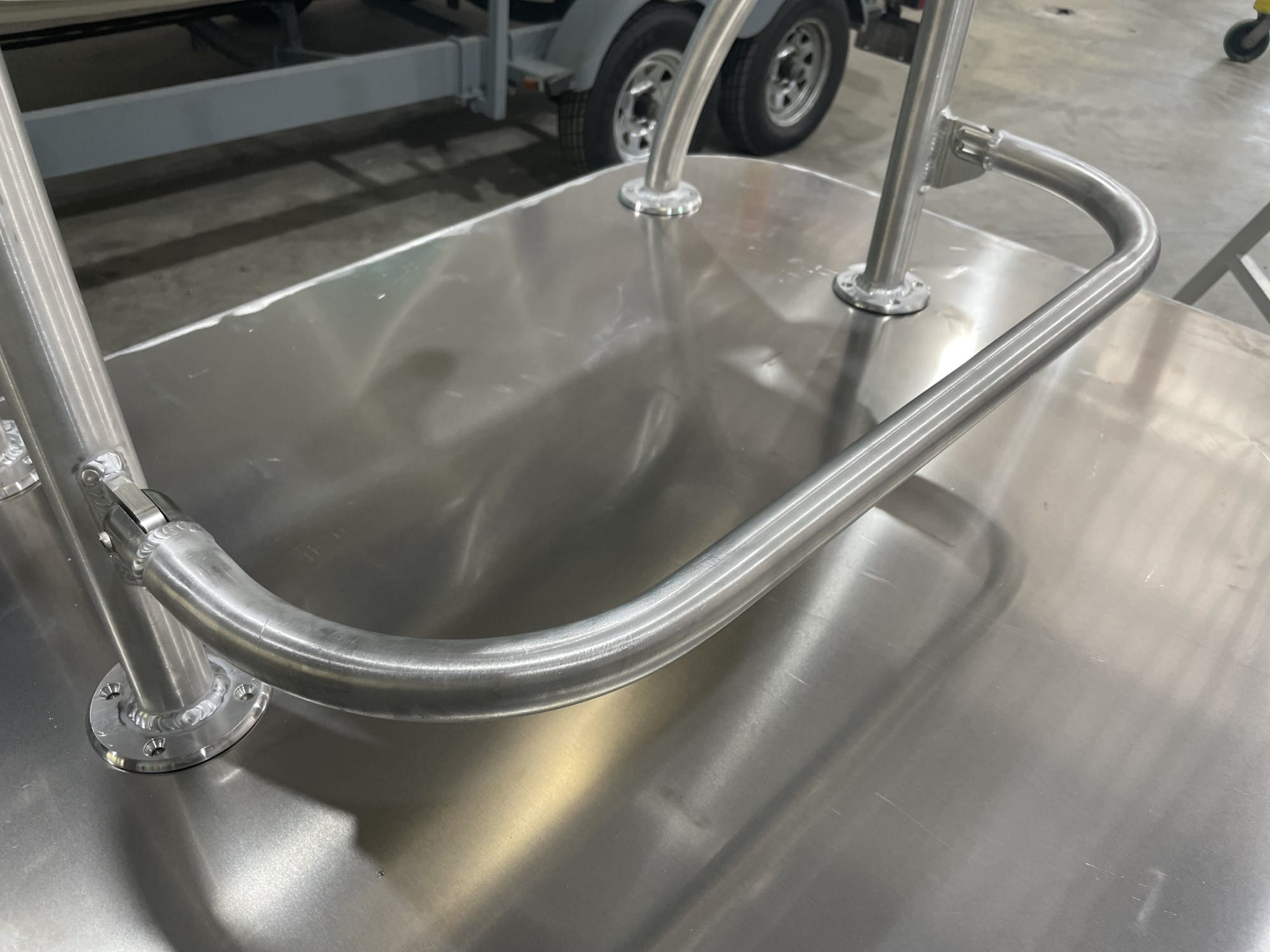

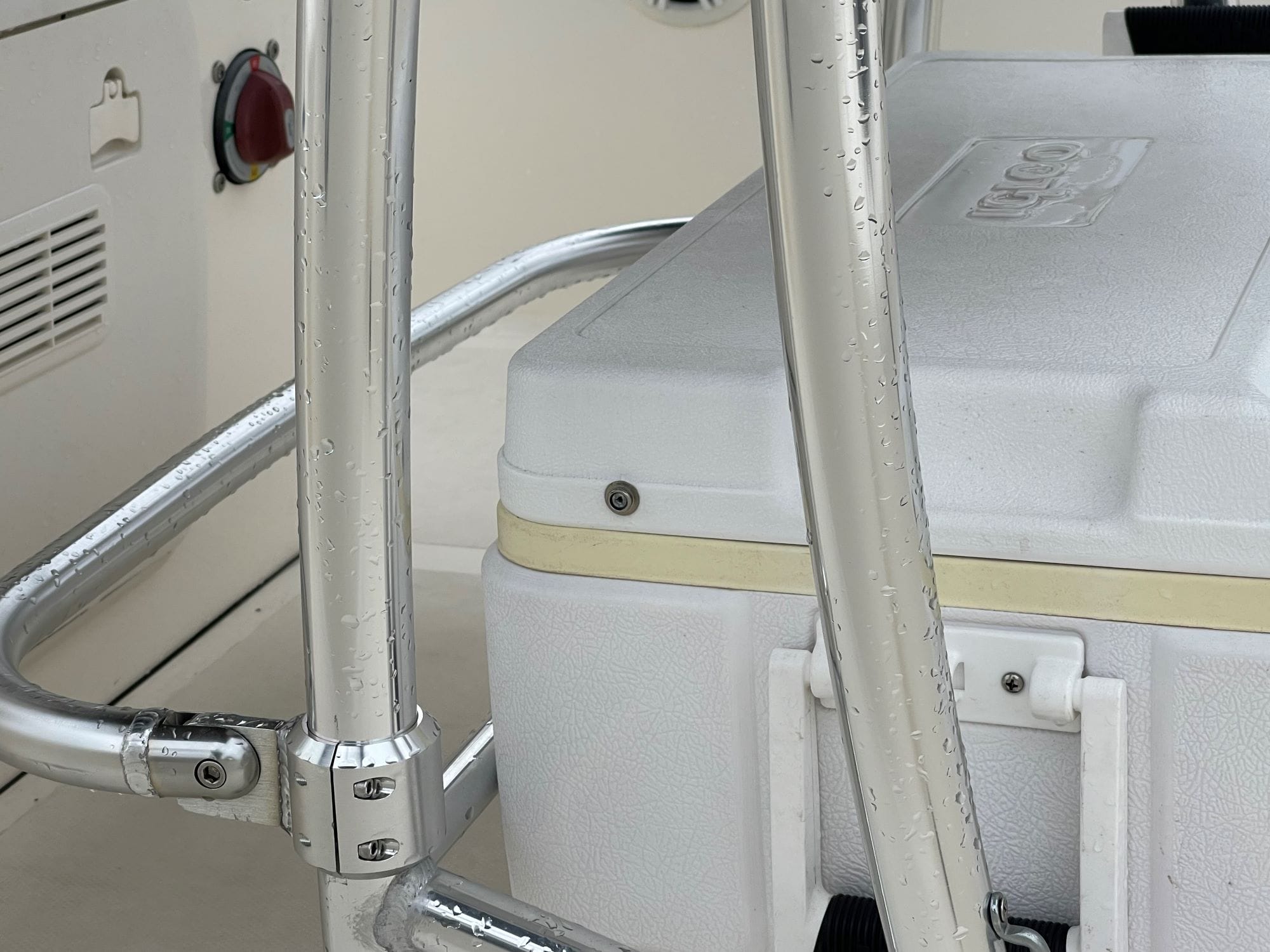

Options for mounting are bolt on hinge tabs, clamp on pipe couplers, or weld on.

Fasteners:

Optional fasteners can be included in your order. All fasteners are 316 Stainless Steel. Choose self-tapping #14 screws or 1/4-20 machine screws (includes washers, nuts, and backing plate).

The fasteners connecting the hinge pins (1/4″ socket head cap screw and nylon washers) are included.

Finish:

Choose mill finish, powdercoating, or brushed anodized.

$225.00

The lead time for this product is approximately 1 weeks

Length – Center to Center *

Enter the exact center to center distance of the pipe footrest you want. For clamp on options, this will be center to center on the vertical pipes it will be installed on. For bolt on options, this will be the center of the hinge points.

Mounting Style *

Finish *

Choose bare aluminum, powder coating, or anodized.
Powder coating adds 1-2 weeks to lead time.

Fasteners *

Clamp on option includes socket head screws to install clamp. Select the fasteners you want for the bolt on to vertical surface option.

SKU: FTR Category: Platforms and Pipework Tag: footrest
