Transom Support Plate – Top Plate Only 2 inch
aka… Transom Reinforcement Plate, Transom Backer Plate
Use these plates as a reinforcement or doubler plate to strengthen your transom in way of the engine mounting bolts and spread the stress from across a wider area. The hole pattern is CNC machined to perfectly match the universal outboard mounting pattern used by all major manufacturers.

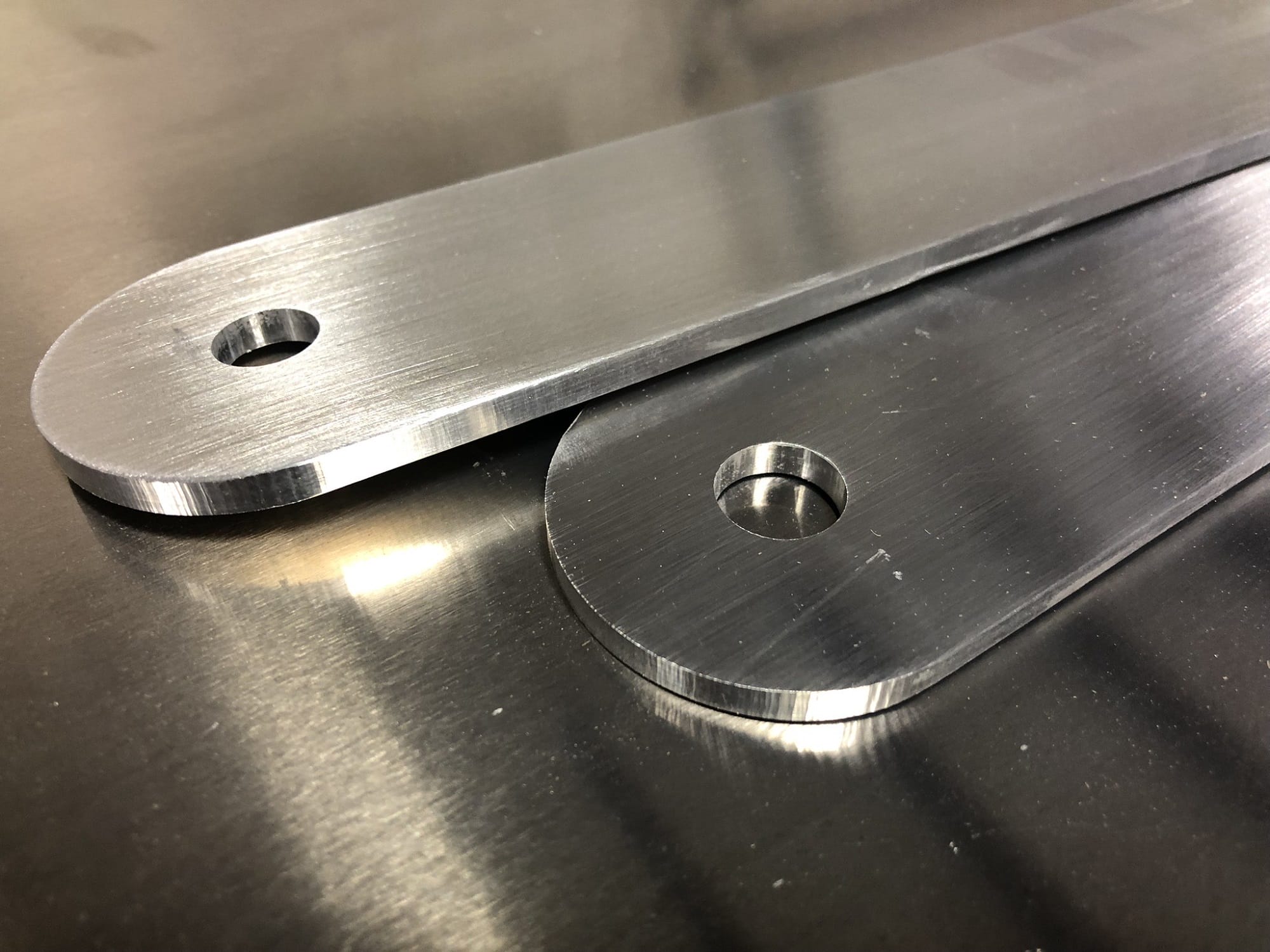

Our plates are CNC machined for a perfect fit.
Dimensions:
Universal outboard motor hole spacing
- 12-7/8″ (327mm) between upper bolt holes
- 9-7/8″ (251mm) between lower bolt holes
- 0.56″ hole diameter
- 3/16″ marine grade 5052 aluminum

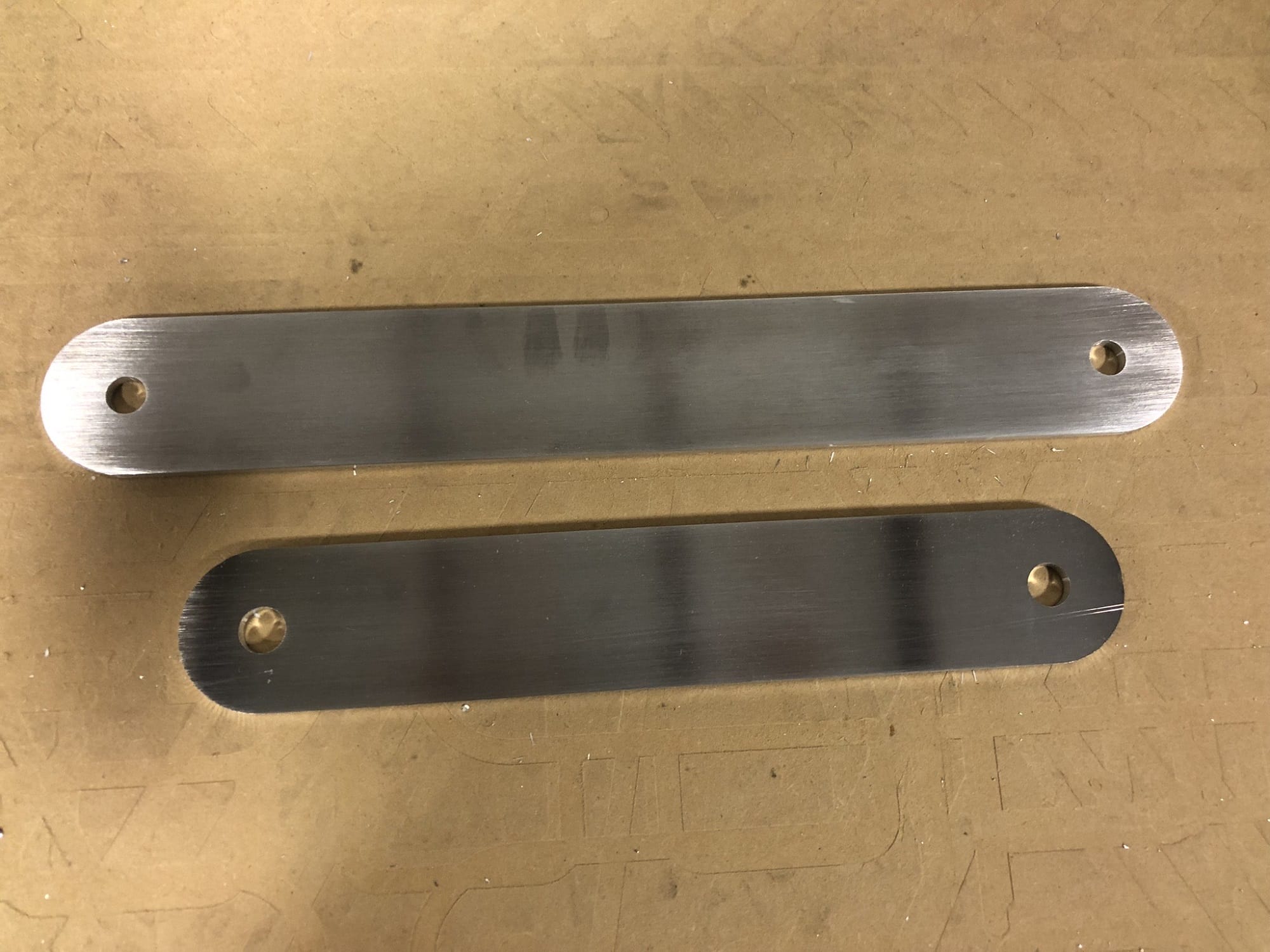

- Top Plate: 14-7/8″x2″ overall
- Bottom Plate: 11-7/8″x2″ overall
Options:
- Blank plates are in stock and ship immediately.
- 1/4″ and 3/8″ thickness.
- Custom engraving available.
