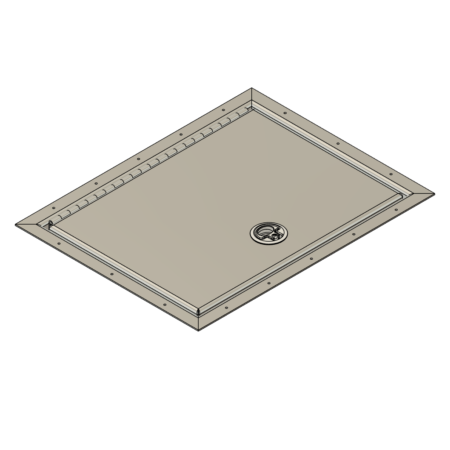

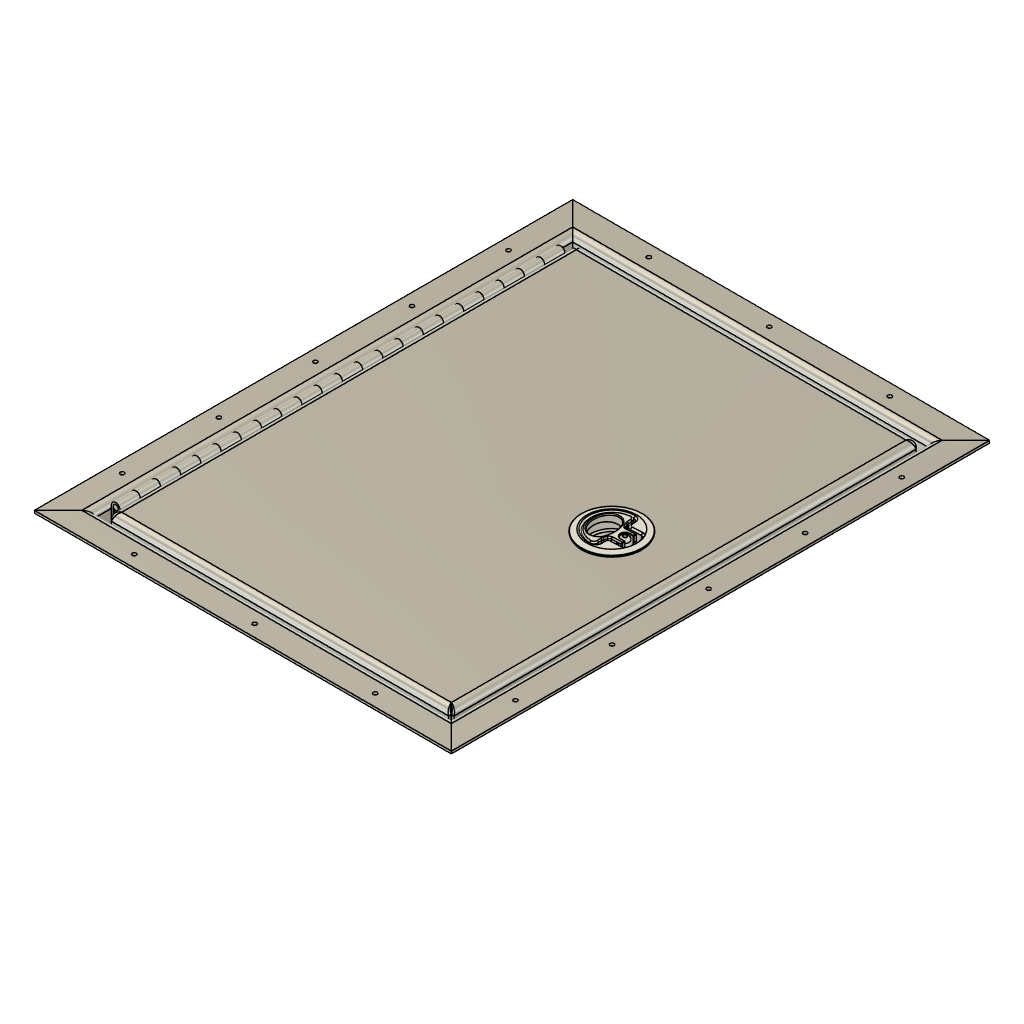

Flush Mount Aluminum Hatch

We fabricate custom hatches and hatch frames ready to drop in your boat deck. We also have a hatch which includes a welded dry storage box or livewell integrated with the hatch.

Our CNC formed hatch channel is designed to integrate the mounting flange, drainage channel, and seal ledge with a single component. This means that the hatch frame only needs to be welded at the corners and there will be minimal distortion and bowing in the frame.

Standard features:

  • Welded aluminum piano hinge.
  • Drain hole in channel with welded hose barb.
  • Rubber hatch seal.

Options:

  • Finish – bare aluminum or powdercoating
  • Latch selection

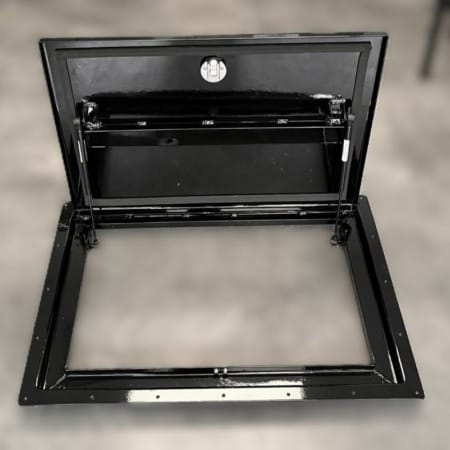

  • Gas springs or spring lid supports

Customize your hatch order below by selecting your size, latch, and finish. Feel free to contact us if you have any questions or need additional options.

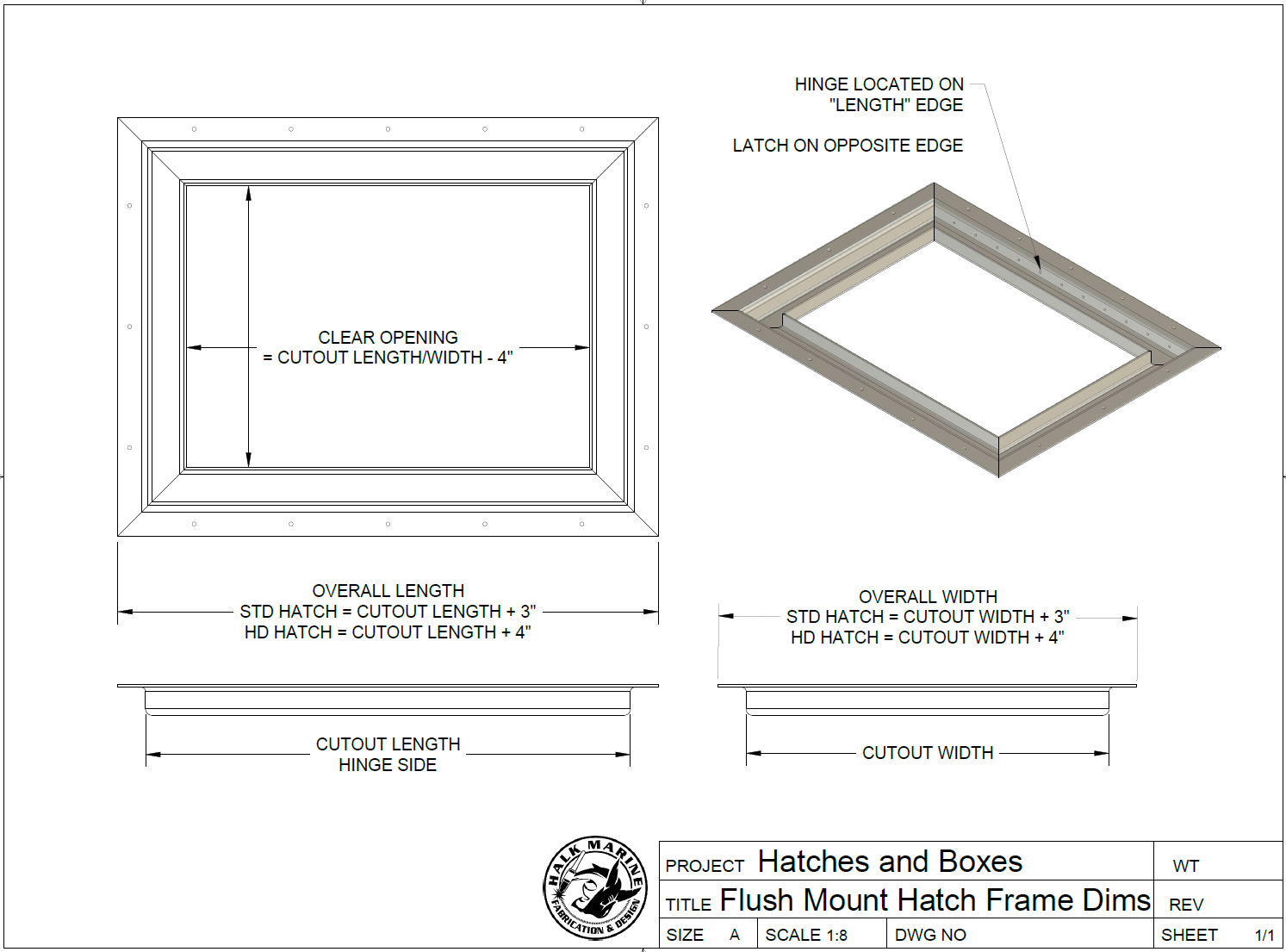

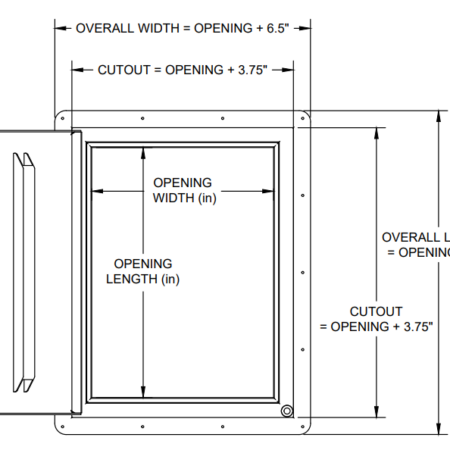

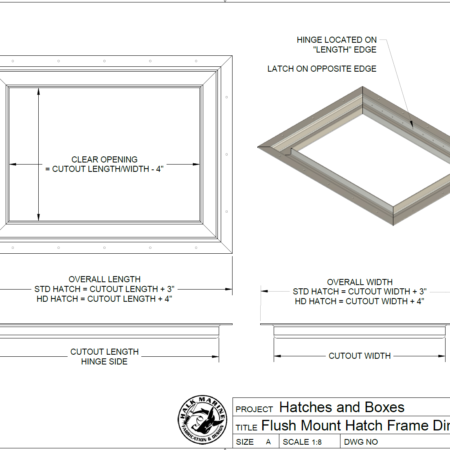

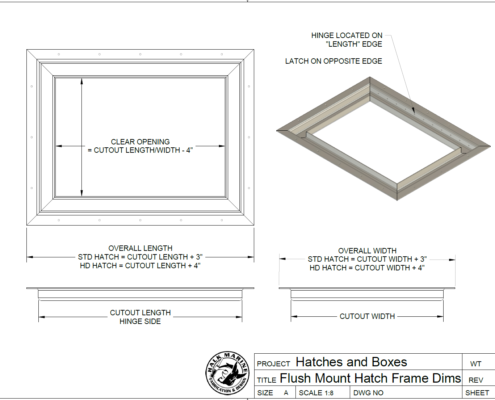

Dimensions

  • The hatch ordering dimensions are based on the cutout opening to fit the hatch.
  • The cutout will be 4″ larger than the clear hatch opening dimension.
  • The overall length and width with the mounting flange is 3″ larger than your cutout.

$0.35 / Cutout dimensions (0.25" increments)

The lead time for this product is approximately 2 weeks

Total Area (sq. in.)
Product Price

Hatch Base Construction *

You must select this option which accounts for the base cost of fabricating the hatch of any size.

Flange Holes and Fasteners

We can machine the holes in the flange for mounting or leave it undrilled in case you are welding or need to make your own hole pattern. For pre-drilled holes, choose whether you want to use machine screws w/ nuts and washers or if you want to use self tapping screws. All hardware is 316 stainless steel.

Latch Selection *

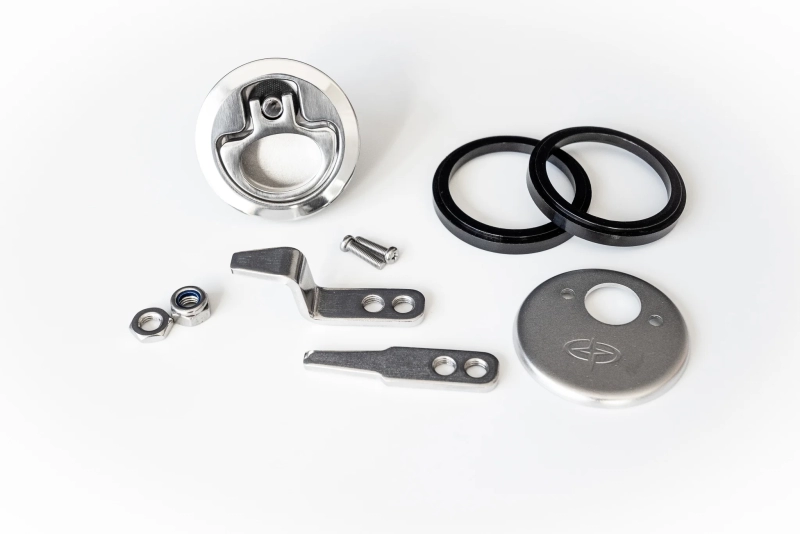

Choose your latch type. You can look at pictures of the latches at the bottom of the page. If you want to use a different latch than what is listed, let us know and we can CNC cut the mounting holes.

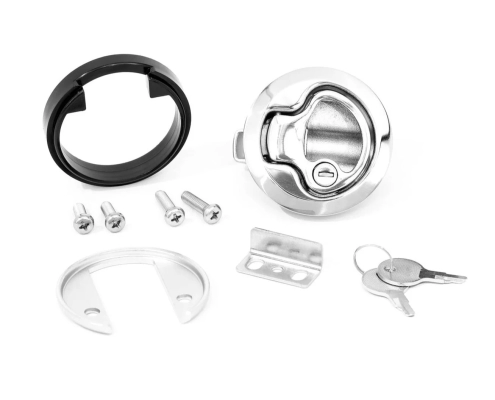

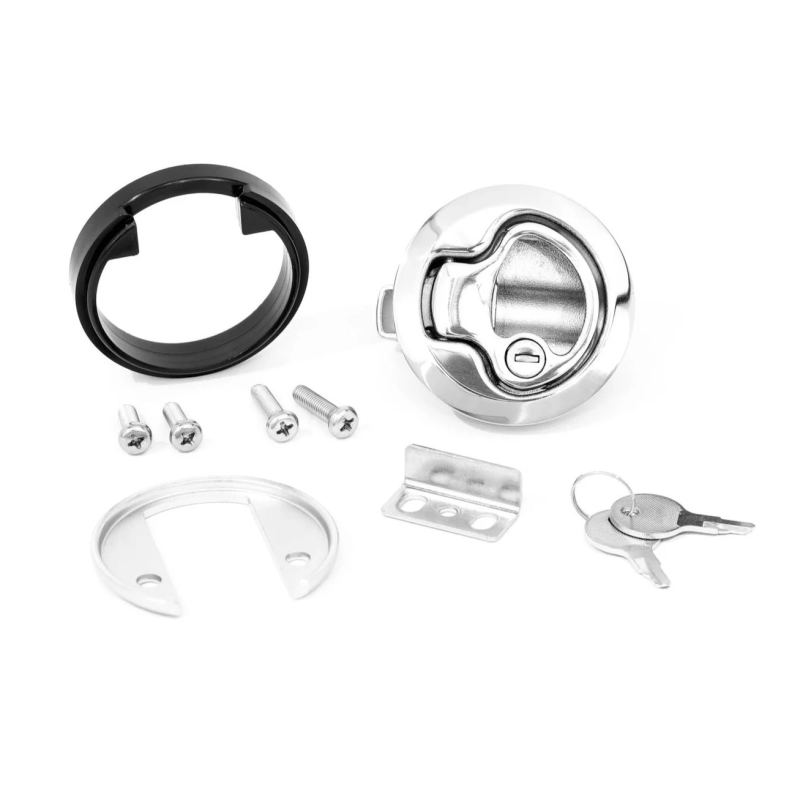

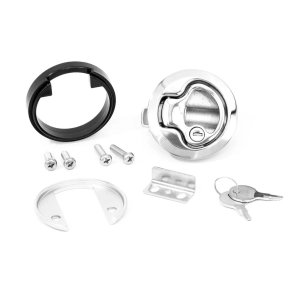

Locking Latch? *

Locking latches are provided with a set of 2 keys.

Surface Finish *

Your hatch can be left bare aluminum or be powder coated. The latch will not be powder coated. Powder coating adds 1-2 weeks to the lead time.

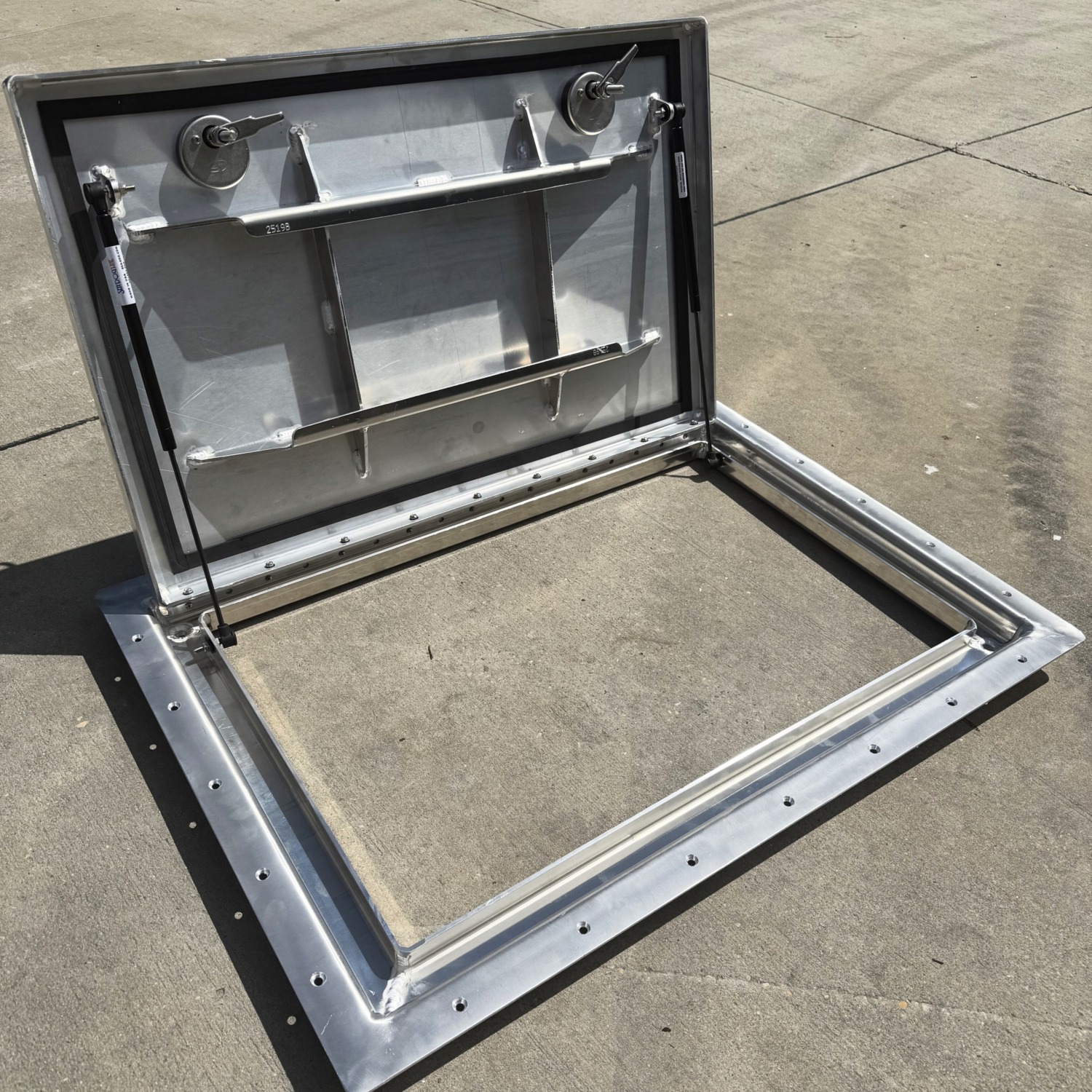

Center stiffener *

Add a centerline stiffener if your hatch is greater than 24″ and will be walked on. The stiffener is installed parallel to the longest edge. We typicall use 2″x1″x1/8″ channel for the stiffener but this will be adapted dependign on your hatch size.

Lid Support *

Choose a lid support.

SKU: HATCH Category: Tags: , , , ,

Custom Boat Hatch Gallery

James Halk

halkmarine

318 1,880

Aluminum welding, marine fabrication, and CNC machining. We specialize in boat fuel tanks, custom marine fabrication, and CAD-driven designs.

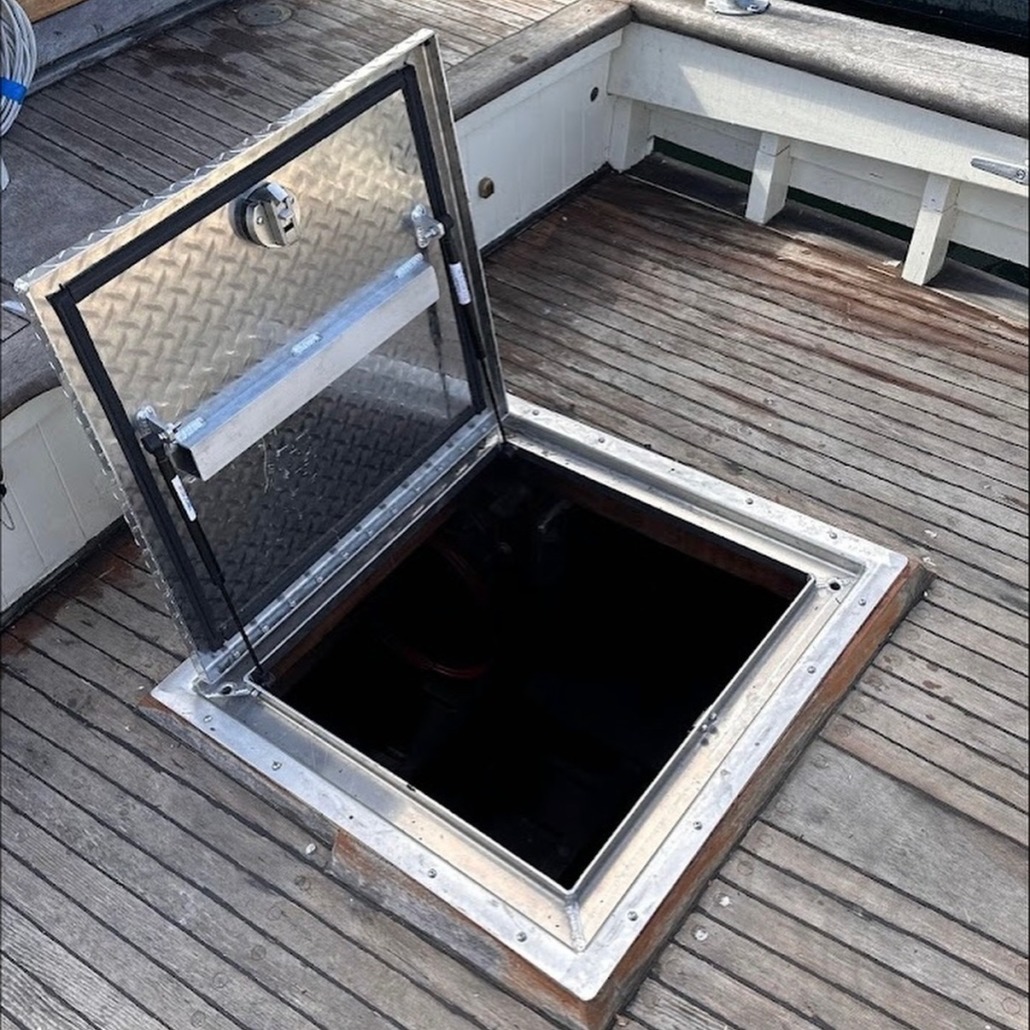

A batch of custom flush mount boat hatches in diamond plate heading to California and Washington. Customize your hatch with instant pricing and fast lead times on halkmarine.com #hatch #boathatch #trickmyskiff

31 1
Open
A batch of custom flush mount boat hatches in diamond plate heading to California and Washington. Customize your hatch with instant pricing and fast lead times on halkmarine.com #hatch #boathatch #trickmyskiff

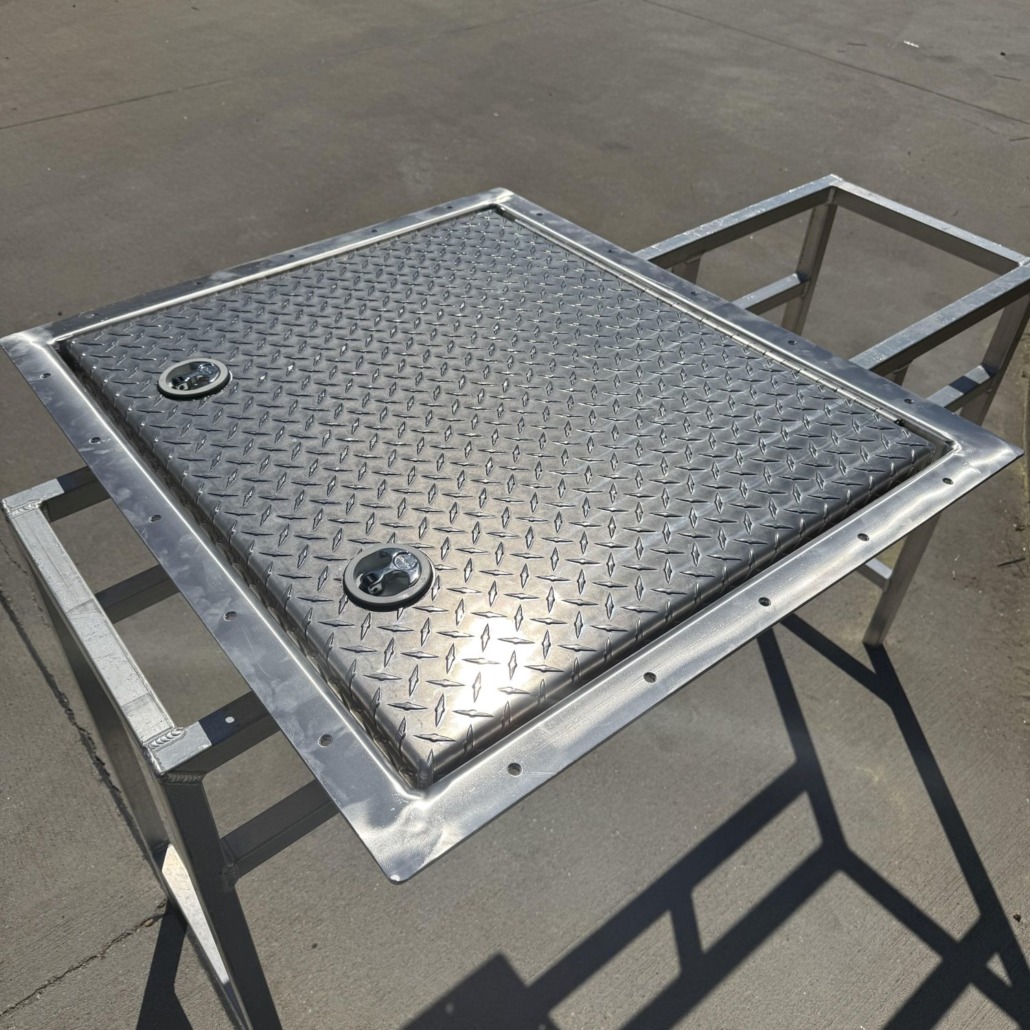

A big ol custom diamond plate hatch assembly. #boathatch

12 0
Open
A big ol custom diamond plate hatch assembly. #boathatch

Our custom hatches are made to drop right into your cutout with a variety of options to choose from. #boathatch #deckhatch #hatch

18 0
Open
Our custom hatches are made to drop right into your cutout with a variety of options to choose from. #boathatch #deckhatch #hatch

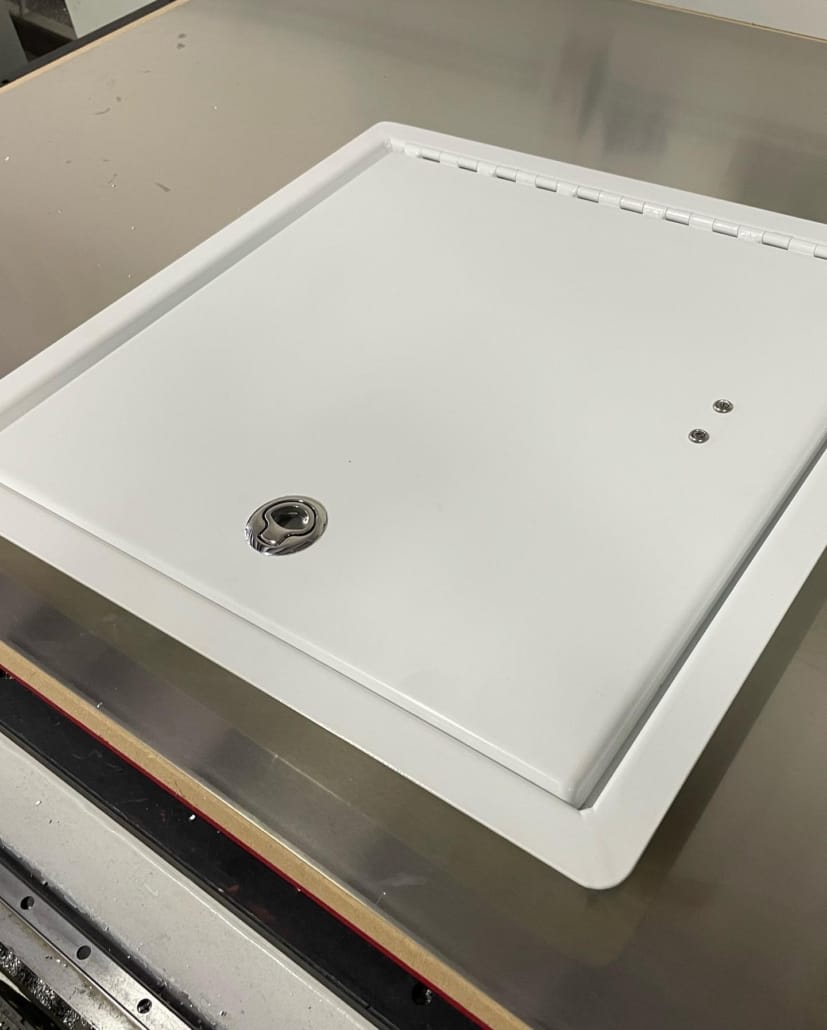

Custom boat hatch with white powdercoating, Perko twist cam latch, and stainless spring support. We build these hatches to fit any deck opening and ship all over the country. Customize your hatches on our website now.
#boathatch #boatupgrades #aluminumwelding #marinefabrication

50 0
Open
Custom boat hatch with white powdercoating, Perko twist cam latch, and stainless spring support. We build these hatches to fit any deck opening and ship all over the country. Customize your hatches on our website now. #boathatch #boatupgrades #aluminumwelding #marinefabrication

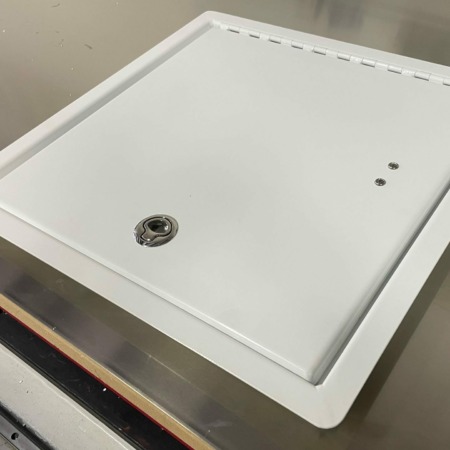

Custom flush mount hatch with white powdercoating and Seadek. Customize your hatch on halkmarine.com #boathatch #marinefabrication #seadek #powdercoating #customboats

28 1
Open
Custom flush mount hatch with white powdercoating and Seadek. Customize your hatch on halkmarine.com #boathatch #marinefabrication #seadek #powdercoating #customboats

2 more custom boat hatches. These are bare aluminum with Perko cam latches. #boathatch

15 0
Open
2 more custom boat hatches. These are bare aluminum with Perko cam latches. #boathatch

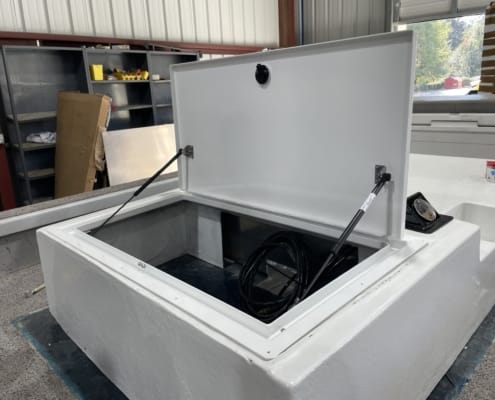

Custom drop in hatch, long skinny version. This one has the push to close stainless Gemlux latch and gas springs for easy opening. Customize yours at halkmarine.com. #boathatch #marinefabrication

22 0
Open
Custom drop in hatch, long skinny version. This one has the push to close stainless Gemlux latch and gas springs for easy opening. Customize yours at halkmarine.com. #boathatch #marinefabrication

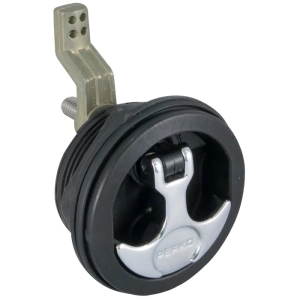

Latch Options
