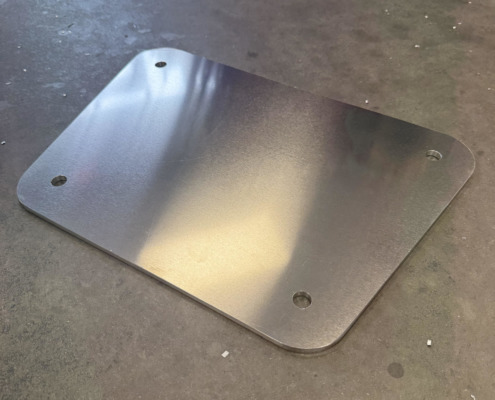

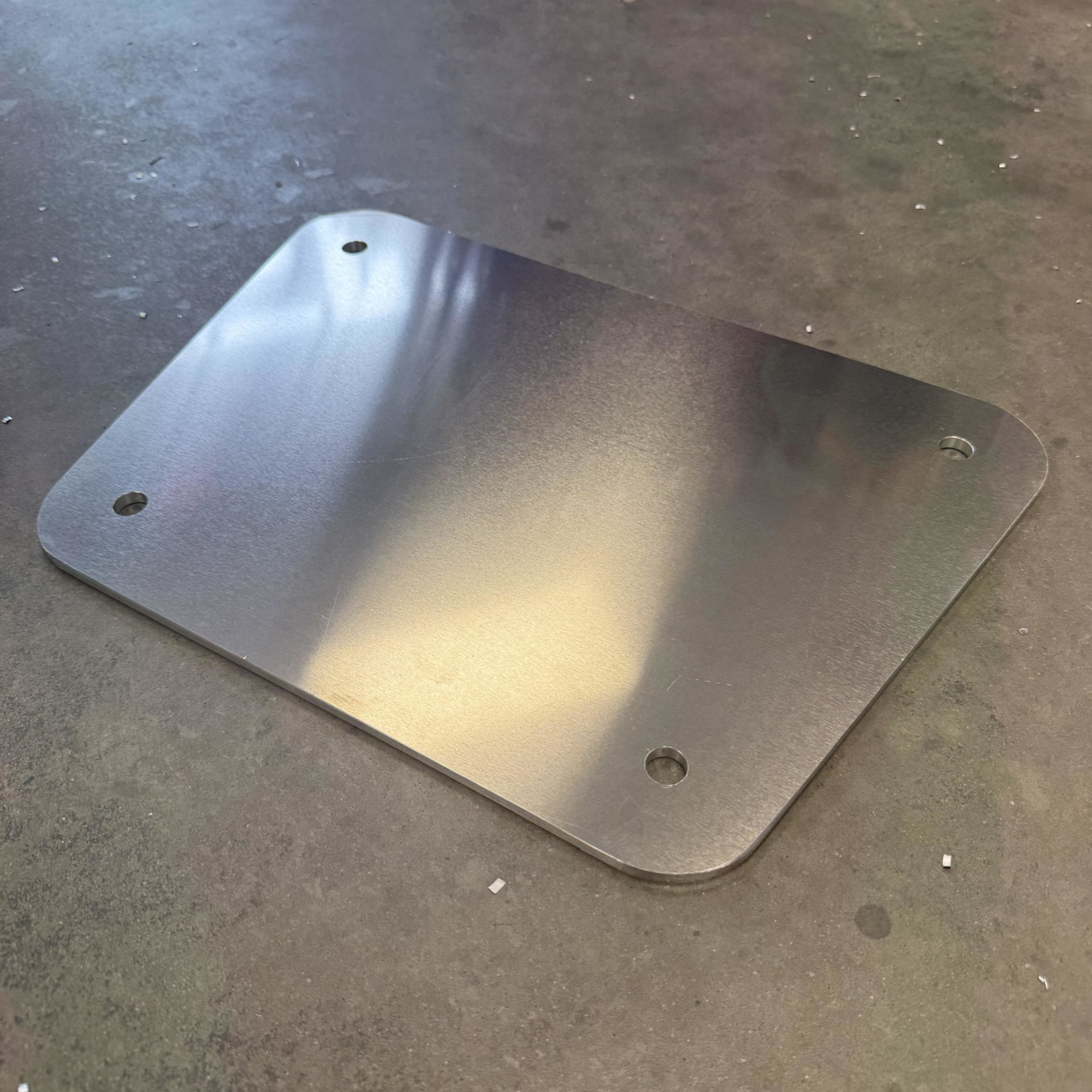

Transom Support Plate – Full Pattern

Also know as Transom Reinforcement Plate, Transom Backer Plate

Use this plate as a reinforcement or doubler plate to strengthen your transom in way of the engine mounting bolts and spread the stress from across a wider area. This plate can also be used as a template to mark holes for mounting your engine. The hole pattern is CNC machined to perfectly match the universal outboard mounting pattern used by all major manufacturers.

Our plates are CNC machined for a perfect fit.

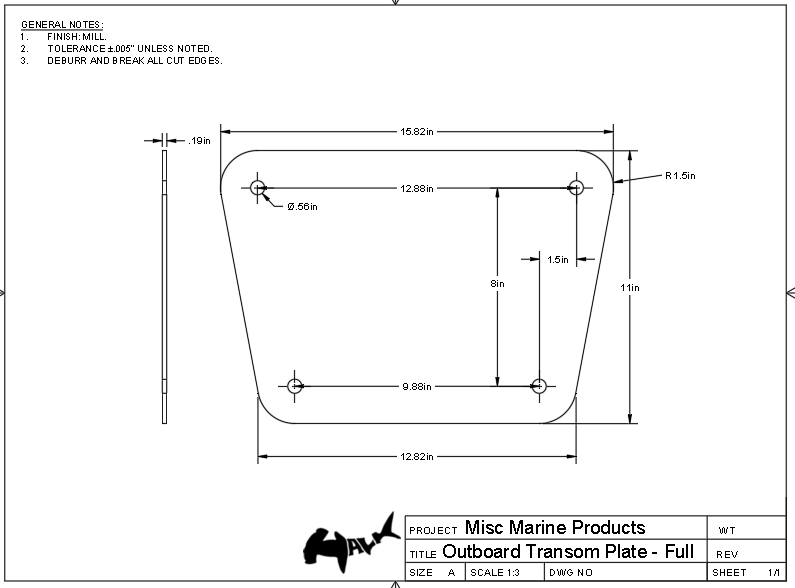

Dimensions:

Universal outboard motor hole spacing with overall dimensions of 15.82″x11″

• 12-7/8″ (327mm) between upper bolt holes
• 9-7/8″ (251mm) between lower bolt holes
• 8″ between upper and lower bolts
• 0.56″ hole diameter will fit standard 1/2″ or 12mm bolts.

Options:

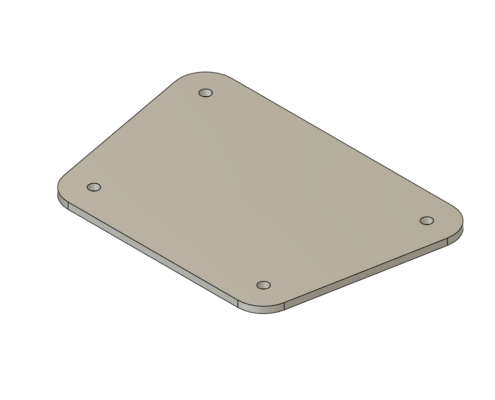

• Choose from 3/16″, 1/4″, or 3/8″ thickness

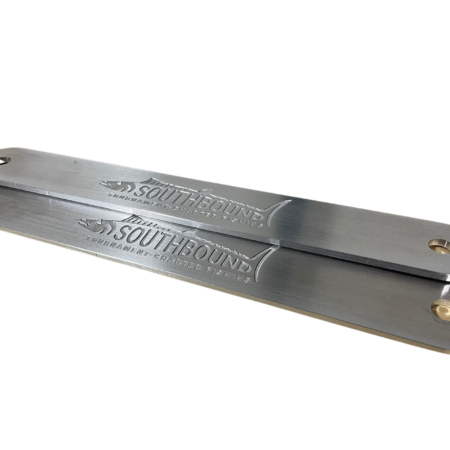

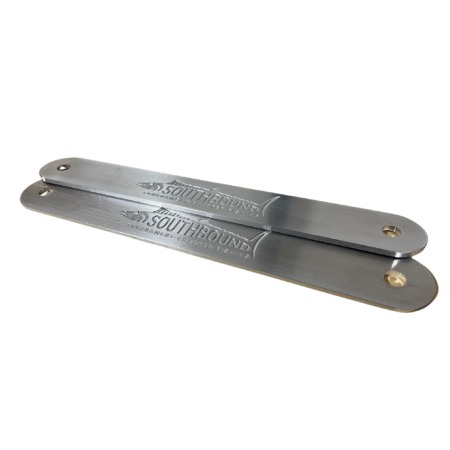

• Custom engraving of your boat logo or name or custom machining.
• Engraving and customization adds 1 week to lead time.
