Shallow Water Anchor Bracket – Round Flush Deck Mount

Heavy duty TIG welded aluminum brackets for guiding your cajun anchor (aka shallow water anchor) pole.

Shallow water anchors are a simple and inexpensive way to hold your boat in a shallow water fishing spot. Fully customizable to accept any diameter anchor pin on the market, our unique brackets provide a vertical guide for the poles for easy deployment and retrieval.

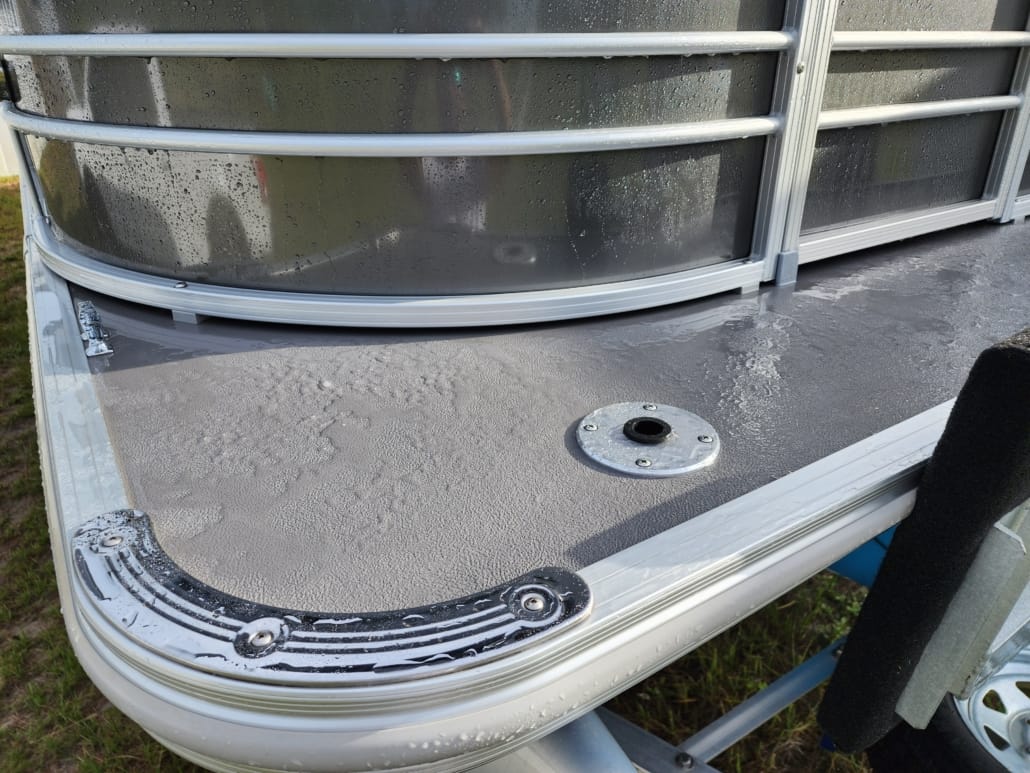

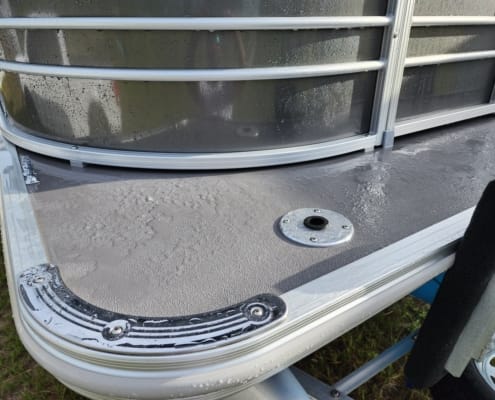

This style of deck mount is meant to mount flush in the deck of pontoon boat or similar style deck boat. Install by drilling a hole in the deck to fit the guide pipe through, then through bolt or screw the mounting pad to the deck.

Standard Dimensions:

• Guide Pipe: 8″ long x 1″ sch 40 pipe (1.315″ OD/1.05″ ID) – fits 3/4″ diameter anchor pins.

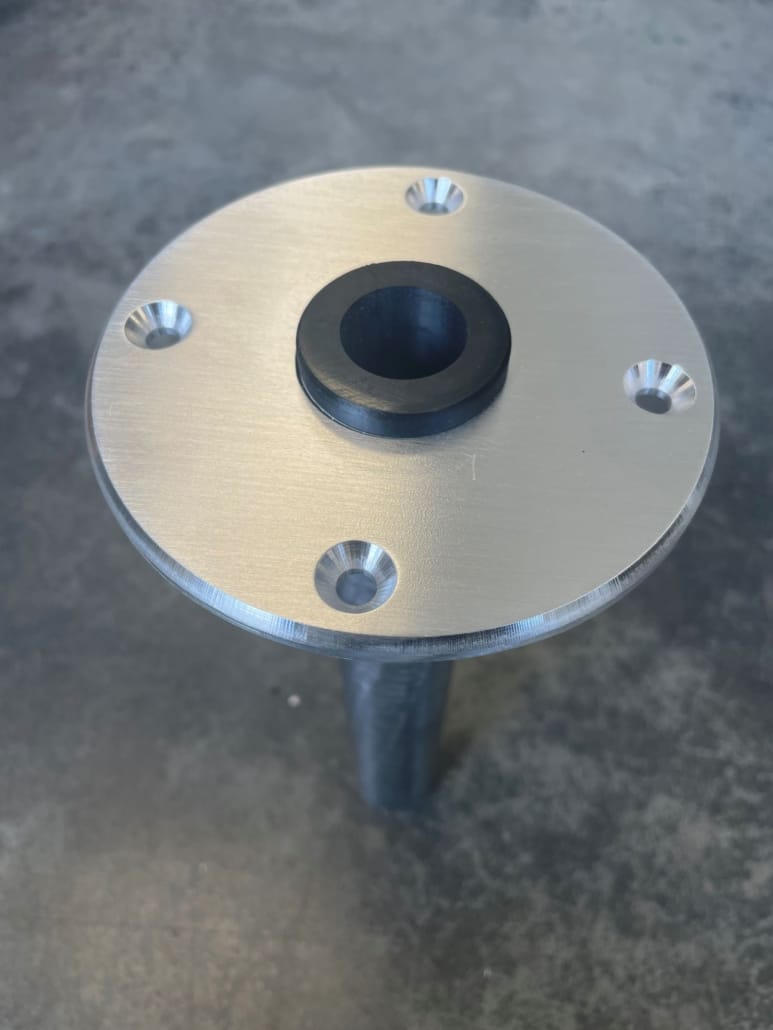

• Mounting pad: 5in diameter 1/4″ thick pad with 4 countersunk holes.
• Includes matching backing plate and 2″ 316SS fasteners for underside of the deck.
• Machined Delrin liner bushing is included.

Options:

• Regular 1″ guide pipe with .80″ bushing for 3/4″ anchors
• Large 1-1/4″guide pipe with 1.05″ bushing for 1″ anchors
• Extra large 1-1/2″ guide pipe with 1.35″ bushing for 1″ sch 40 pipe push poles and spud poles.
• Powder coating
