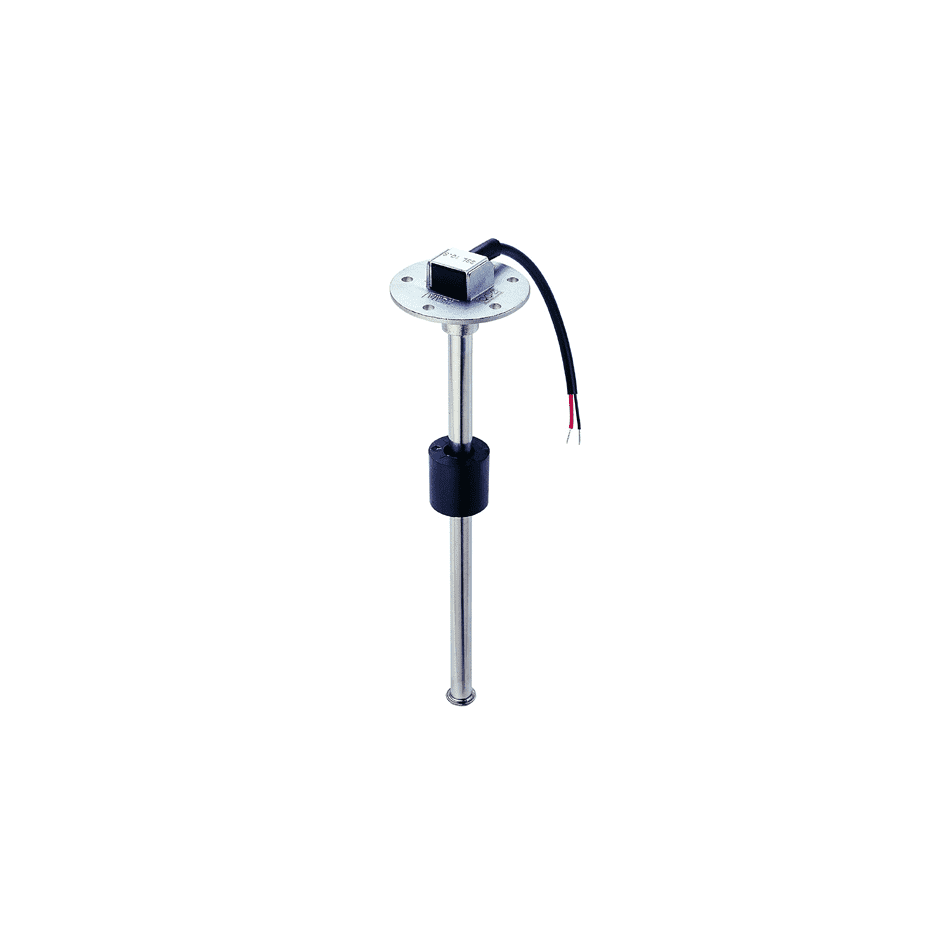

KUS Sending Unit - Fuel & Water Tank Sensors
Description
Description
The KUS electric liquid level sending units are widely used in marine, on-road, off-road, generator set, and industrial applications. The electric liquid level sending unit utilizes reed switch and magnetic field technology. The advantage of reed switch type level sender over thick-film swing arm type level sender is the reed switch’s durability and reliability. Additionally, in reed switch level senders the float is the only moving part of the sender, thereby minimizing potential mechanical failures.
Specs
Material:
- Body: SUS 316 Stainless Steel
- Cable: PVC
- Float: NBR
American Standard Output:
- 4″ through 18.5″ at 0.5″ increments
- 19″ through 96″ at 1″ increments
Mounting Methods: Standard SAE 5 hole pattern
Protection Rank: IP65
Output Signal:
- American Standard 240-33 ohms (240 ohms at empty, 33 ohms at full)
- European Standard 0-180 ohms (0 ohms at empty, 180 ohms at full)
- *Voltage output available upon request
- *Current output available upon request
- *Customized output curve available upon request
Resolution Range:
- 21mm
- *Finer resolution (as low as 10mm) available upon request
Operational Temperature: -40°F ~ +185°F (-40°C ~ +85°C)
